Description

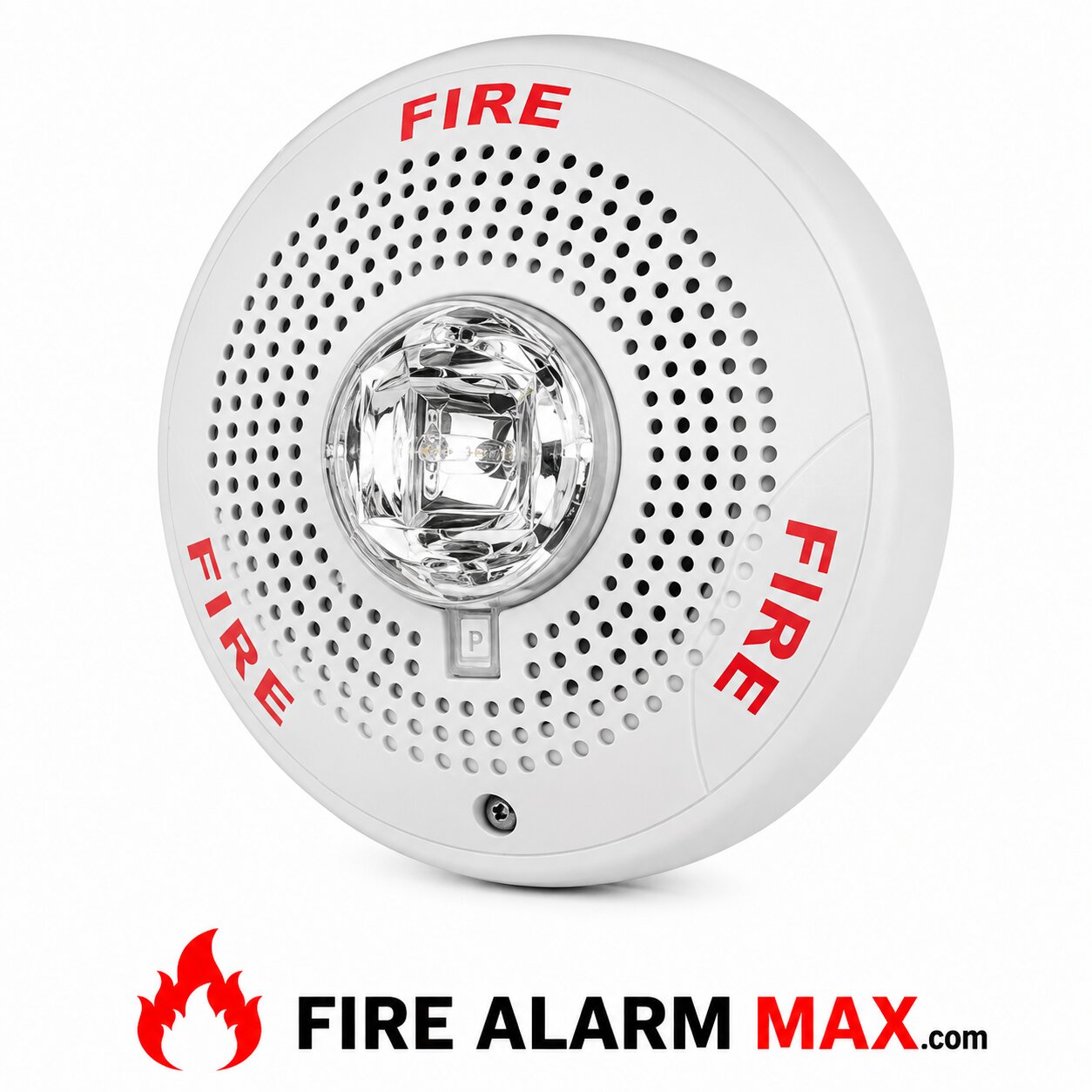

System Sensor SPSCWH

The SpectrAlert Advance Series of speakers and speaker strobes reduce costly ground faults using a plug-in design. And a universal mounting plate that allows the installer to pre-wire mounting plates. Dress the wires, and confirm wiring continuity b efore plugging in the speakers. A protective plastic cover prevents nicked wires by covering exposed speaker components.
These devices enable faster installations by providing instant feedback to ensure that wiring i s properly connected, rotary switches. To select voltage and power settings, and 11 field-selectable candela settings for wall and ceiling speaker strobes.
General
A universal mounting plate shall b e used for mounting ceiling and wall products. The notification appliance circuit and amplifier wiring shall terminate at the universal mounting plate.
SpectrAlert Advance speaker strobes, wh en used with the Sync•Circuit™ Module accessory. Shall b e powered from a non-coded notification appliance circuit output. And shall operate on a nominal 12 or 24 volts. Speaker strobes shall have field-selectable candela settings.

Features
Plug-in design and protective cover reduce ground faults
Universal mounting plate with an onboard shorting spring tests wiring continuity b efore installation
No extension ring i s required
Field selectable candela settings:
Automatic selection of 12- or 24-volt operation at 15 and 15/75 candela
The rotary switch simplifies the field selection of speaker voltage (25 and 70.7 Vrms). And power settings (¼, ½, 1, and 2 watts)
SP speakers offer high-fidelity sound output
SPV speakers offer high-volume sound output
Compatible with System Sensor synchronization protocol
Electrical compatibility with existing SpectrAlert products
Tamper-resistant construction
Listed for ceiling or wall mounting
