Description

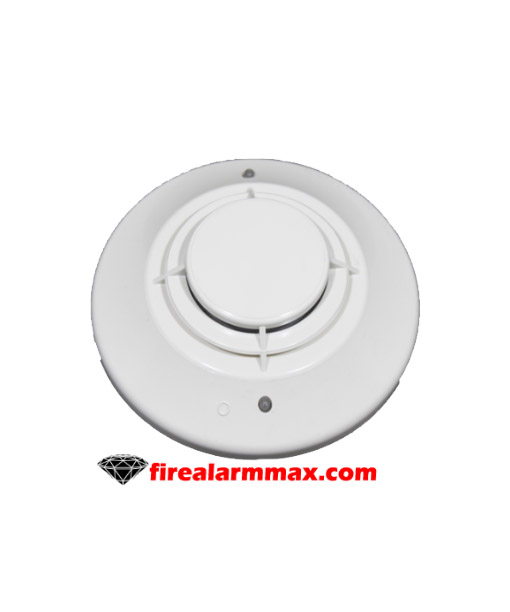

In the first place, Notifier FSI-851 Series intelligent plug-in ion detectors with integral communication has features that surpass conventional detectors. Also, the sensitivity of the detector is programmed in the control panel software. Furthermore, sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with decade address switches, providing exact detector locations for selective maintenance when chamber contamination reaches an unacceptable level.

In Fact, the Notifier FSI-851 Series ionization detector incorporates a unique single-source, dual-chamber design to respond quickly and dependably to a broad range of fires. Besides, FSI-851 Series detectors are compatible with the ONYX series and CLIP series intelligent Fire Alarm Control Panels (FACPs).

Features / Specifications

• Sleek, low-profile design.
• Addressable-analog communication.
• Stable communication technique with noise immunity
• Low standby current together with a two-wire SLC connection
• Dual LED design provides a 360° viewing angle as well as a remote test feature from the panel.
• SEMS screws for wiring of the separate base.
• Constructed of off-white Bayblend®, designed to commercial standards, as well as offers an attractive appearance.
• Size: 2.0″ (51 mm) high x 4.1″ (10.4 cm) diameter installed in B501 base, 6.1″ (15.5 cm) diameter installed in B710LP base.
• Operating Temperature: 0°C to 49°C (32°F to 120°F).
• Relative Humidity: 10% – 93% noncondensing.
• LED Current (max.): 6.5 mA @ 24 VDC (“ON”)
• Voltage Range: 15 – 32 volts DC peak.
• Standby Current (max. avg.): 300 μA
• Listed to UL 268.
• 94-5V plastic flammability rating.
• Sealed against back pressure.
• Built-in tamper-resistant feature
