Description

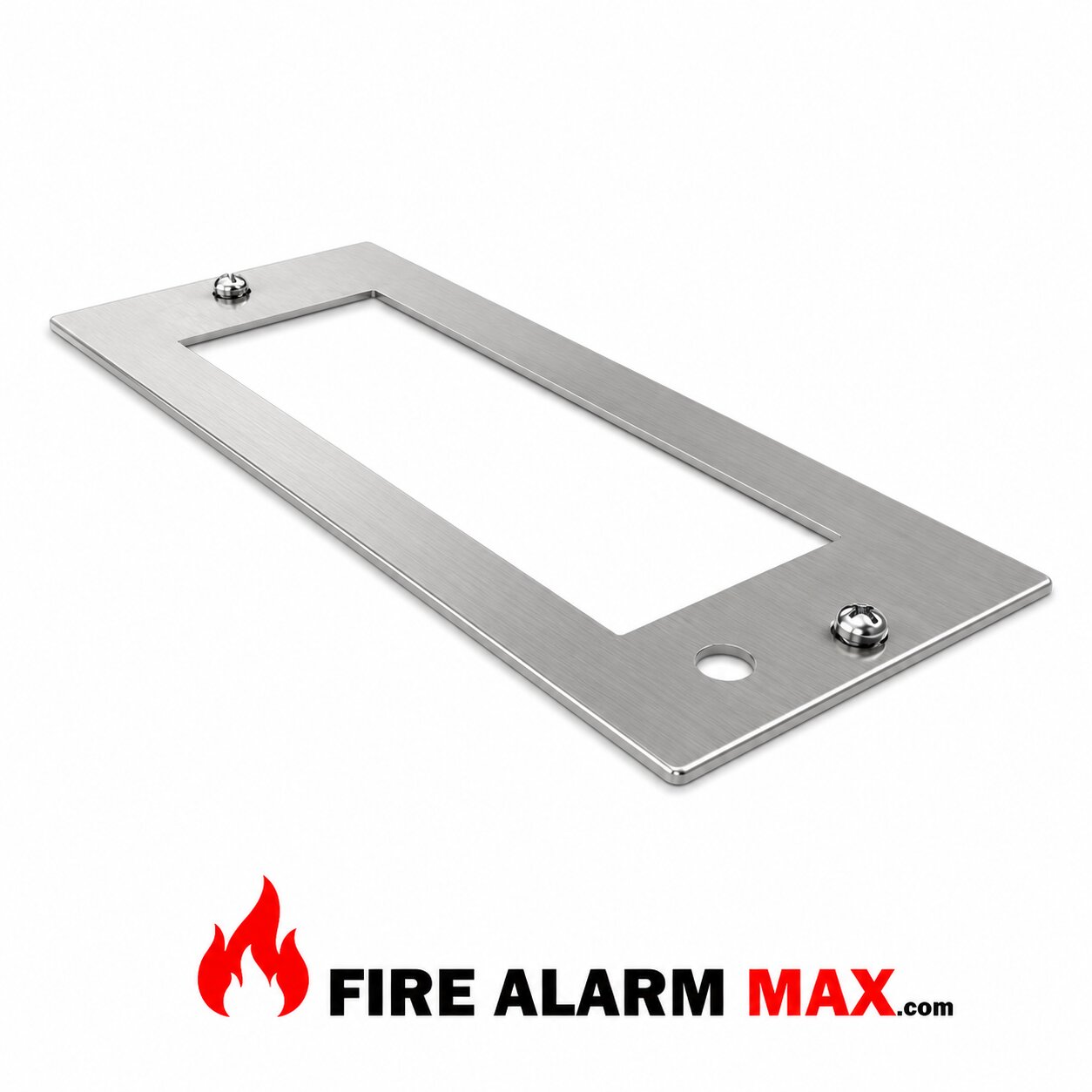

Notifier MP-1B Dress Plate

System Modules
The NFS-3030 includes the ability to communicate with up to twelve conventional modules each with up to eight circuits. Any mix of initiating, notification, relay, speaker, or telephone may – used. Choose any combination of up to eight input (IZM/ IZE) or output modules: ICM/ICE, CRM/CRE, DCM, or VCM/ VCE. Panel modules a r e mounted on the two far-right positions of the CHS-M3 (next to the primary display). Or on any of the four positions on the CHS-4N chassis (CHS-4MN kit required). NOTES: 1) These modules/expanders are NOT to – used for releasing applications. 2) For additional information on these panel circuit modules and expanders, see data sheet DN-6859.
CHS-4MB: Expansion Chassis. Mounts up to four modules.
Includes CHS-4N, MP-1B (Module Dress Panel), and Expander Ribbon Cable.

Placement of Equipment in Chassis and Cabinet

Rows: The first row of equipment in the cabinet mounts in chassis CHS-M3. Mount the second, third, or fourth rows of equipment in chassis CHS-4MB (see NFS-3030 Installation
Manual regarding panel output modules) or CHS-4L (for voice components, see Voice Alarm System Manual).
Designing the cabinet layout, consider the separation of power-limited. Wiring as discussed in the NFS-3030 Installation Manual.
Positions: A chassis offers four basic side-by-side positions for components. The number of modules that can – mounted in each position. Depends on the chassis model and the size of the individual module. There a r e a variety of standoffs and hardware items available for different combinations and configurations of components.
