Description

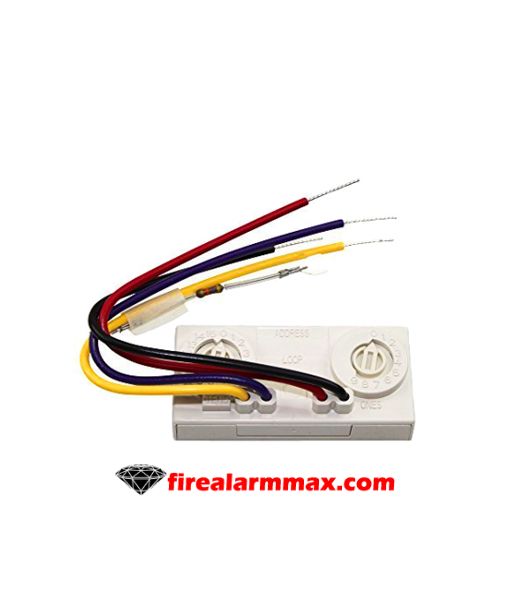

Gamewell Fci AMM-2F

A single Style B, Class B initiating device circuit (IDC). With a 47KW end-of-line resistor. This module provides an address for any device. To a group of devices connected to this circuit on the signaling line circuit (SLC). Of the Gamewell-FCI addressable series fire alarm control panel.

The Gamewell Fci AMM-2F module i s programmed to provide a wide variety of input functions. Of the Gamewell-FCI addressable series fire alarm control panels. It can b e identified as a manual station, heat detector, and plenum detector. And, water flow switch, tamper switch, N.O. contact, smoke detector. Projected beam smoke detector, sub-loop, remote zone, It can serve as a remote system silence, system reset, or system acknowledge. Or drill switch. It i s e ven possible to customize its device type to meet specific job requirements.

The initiating device circuit of the AMM-2F can support a maximum line resistance of up to 40 ohms. Allowing the use of linear heat detection devices. The compact size facilitates the installation of the module inside manual stations. Mounting boxes of various types of alarm-initiating devices

.Features / Specifications

Compact size allows easy installation

Class B, Style B, initiating circuit

40 Ohm line resistance for each initiating device circuit

Connects to any normally open dry contact device
