Description

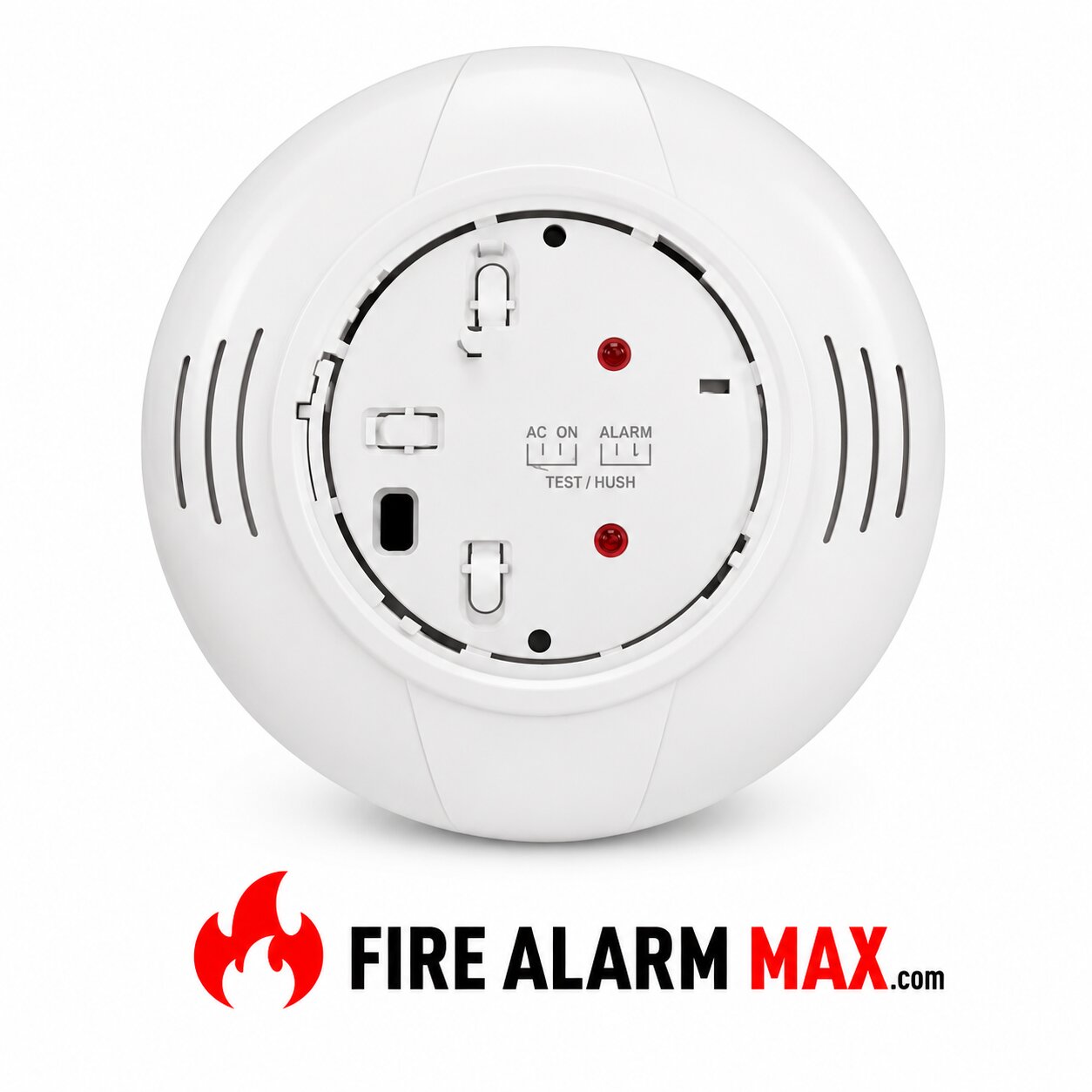

The Select Series sounder and low-frequency sounder bases are designed for new as well as existing dwelling unit applications. Also, they offer maximum flexibility in installation, configuration, and operation to meet or exceed UL 268 and UL 464 requirements. Besides, the System Sensor B200SR-WH low-frequency sounder bases are designed to meet the NFPA 72 sleeping space requirement to produce a fundamental frequency of 520 Hz +/- 10% with a square wave or its equivalent. In addition, studies show that a lower frequency, centered around 520 Hz, is the most ideal to wake sleeping occupants, even those with mild to severe hearing loss.

In general, the System Sensor B200SR-WH sounder and LF sounder bases are fully compatible with existing B501BH-Series sounder base installations. Furthermore, the device enables users to select one of two B501-supported tones (ANSI Temporal 3 or Continuous) through a jumper.

Features / Specifications

• Bases enable a quick and secure detector plug-in
• SEMS screws provide an easy wiring connection
• Support for 12-24 AWG provides installation flexibility
• Multiple base formats meet application requirements
• Standard white color with ivory and black options
• Mechanical locking feature restricts the removal of an attached sensor head
• Pre-wired mounting plate simplifies installation
• Humidity Range: 10% to 93% RH non-condensing
• External Supply Voltage: 16 to 33 VDC (VFWR)
• Standby Current: 500 μA maximum
