Description

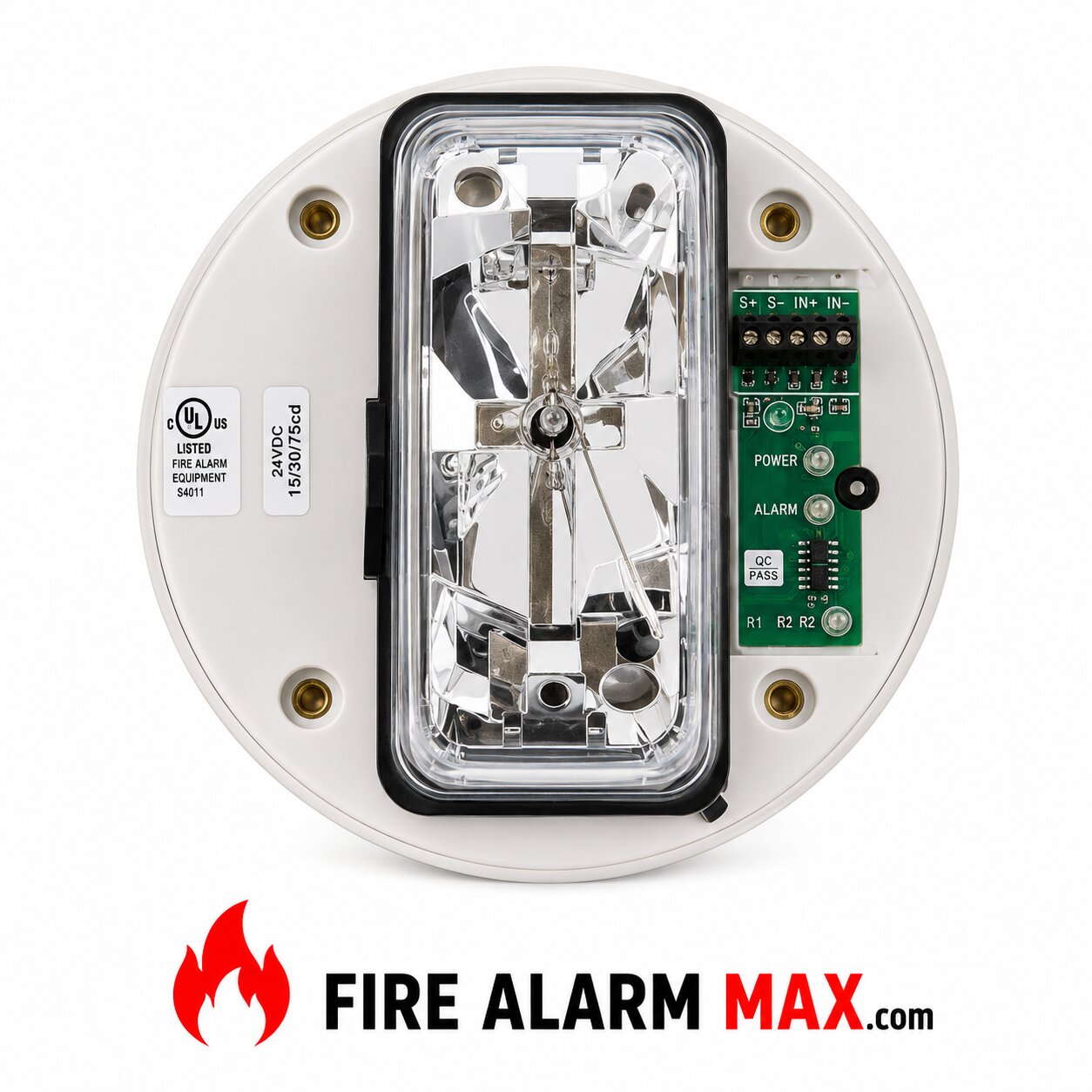

Simplex 49VOH-APPLC-O – Ceiling Mount Addressable Visible (VO) Notification Appliances are also individually powered, addressed, and controlled from a Simplex fire alarm control panel IDNAC signaling line circuit (SLC). Additionally, VO notification appliances use a multi-candela strobe with synchronized 1 Hz flash rate and selectable candela rating. Furthermore, LED and Xenon tube strobes devices are interoperable on the same IDNAC channel. Order the appliance as well as cover separately to simplify the ordering and installation process.

Features

Simplex 49VOH-APPLC-O Individually addressed visible only (VO) notification appliances

• Multi-candela LED strobe available in 110 cd, 135 cd and also 185 cd range
  candela models.
• Small compact design and low current draw due to energy efficient
  Xenon tube strobes, with LED indicators.
• Advanced addressable notification controlled by IDNAC SLCs.
• IDNAC SLCs provide regulated 29 VDC allowing strobes to operate
  with lower current.
• Remove the cover to access the electrical test point.
• Program the strobe intensity from the control panel or the device.
• Wiring supervision to each appliance allows T-tap connections for Class
  B circuits to simplify wiring
• TrueAlert Device Reports at the control panel detail appliance point ID,
  custom label, type, and candela setting.
• Magnet test diagnostics assist checkout as well as testing of the appliances
  and wiring
