Description

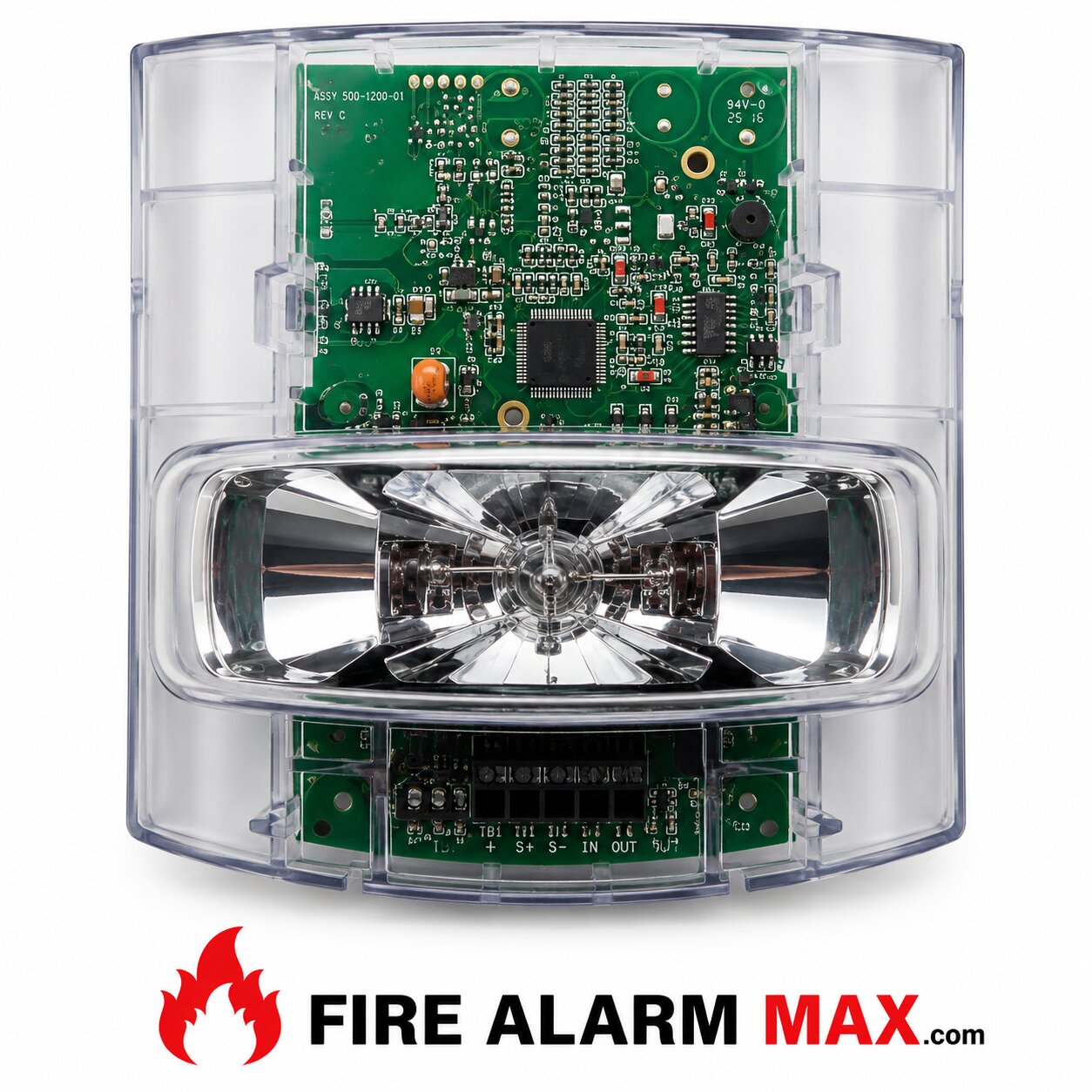

Simplex 49VO-APPLW-O

TrueAlert ES weatherproof addressable appliances provide visible and audible/visible notifications for indoor and outdoor. And the extended temperature and extended humidity applications. They ar e individually addressed and receive power, supervision And control signals from a Simplex fire alarm control unit. Providing IDNAC Signaling Line Circuits (SLCs).
Individually addressed and controlled multi-candela TrueAlert ES weatherproof notification appliances. For extended temperature and humidity range provide:
Multi-candela xenon strobe with synchronized 1 Hz flash rate. And with intensity programmable from the control unit or jumper selected as 15, 75, WP 75, or WP 185 cd
Advanced addressable notification controlled by IDNAC SLCs. Providing regulated 29 VDC allows strobes to operate with lower currents.
Wiring supervision to each appliance allowing “T-tapped” connections. For Class B circuits to simplify wiring (Class A circuits require in/out wiring)
Self-Test Mode allows on-board sensors to detect the strobe. And horn output and th en report their status to the control unit
TrueAlert Device Reports at the control unit detailing appliance point ID, custom label, type, and candela setting
Magnet Test diagnostics to assist checkout and testing of appliances and wiring
Electrical test point access with out removing cover LED Indicator and Magnet Test:
Appliance LED can b e selected to display each polling cycle to indicate appliance supervision
Wh en the controller i s in diagnostic mode, the Magnet Test pulses the LED. To indicate appliance address and can b e set to briefly flash the strobe and sound the A/V horn
