Description

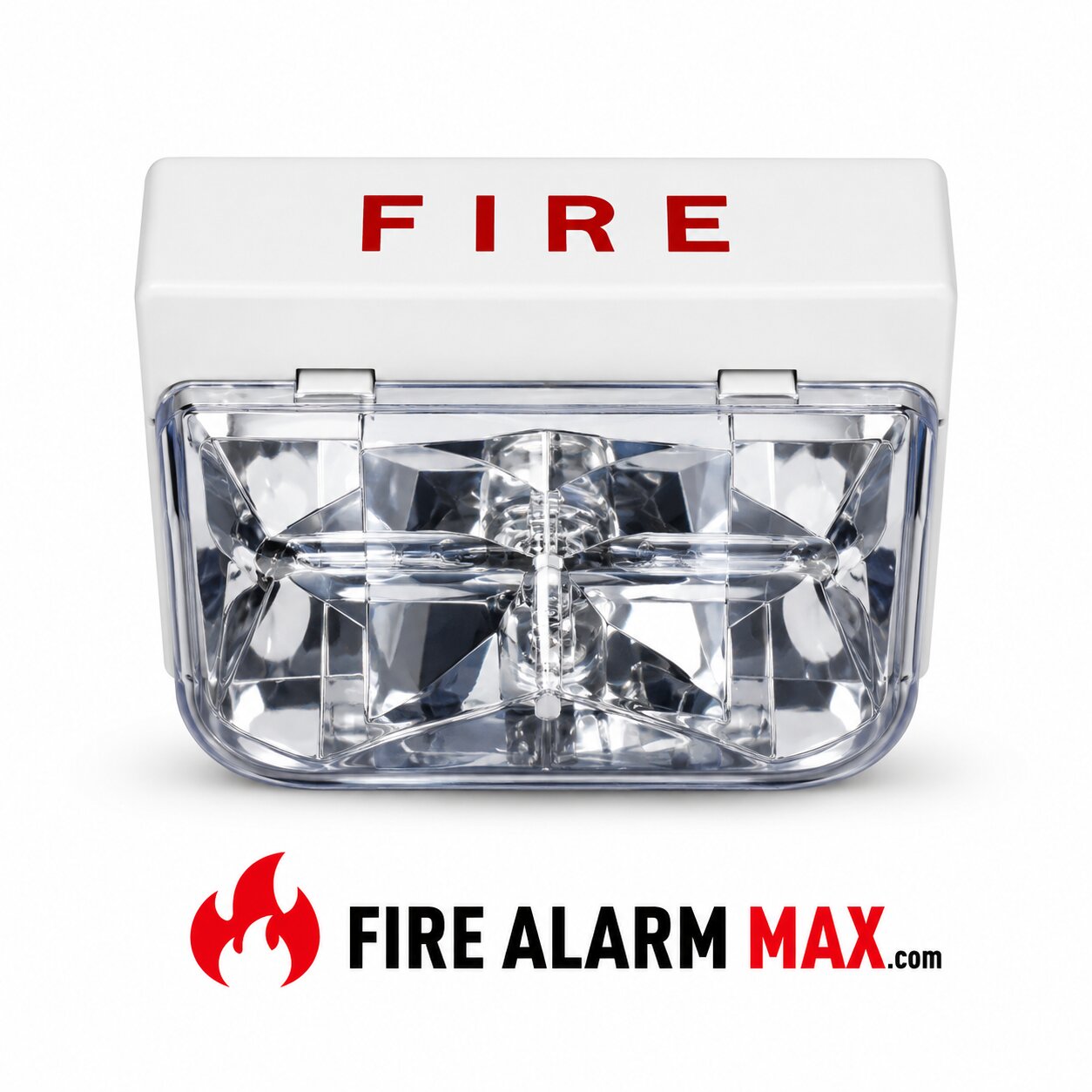

The Simplex 4906-9112 non-addressable ceiling strobe provides convenient installation to standard electrical boxes. Also, the Simplex 4906-9112 is both impact and vandal-resistant and provides a convenient strobe intensity selection. Since each model can be selected for strobe intensity output, the onsite model inventory is minimized, and changes encountered during construction can be easily accommodated. Strobe appliances are installed using standard single-gang electrical boxes. Horn/strobe appliances are installed using standard 4″ electrical boxes.

During installation, a selection plug at the back of the housing determines the desired strobe intensity. Also, an attached flag with black letters on a highly visible yellow background allows the selected intensity to be seen at the side of the strobe lens.

SmartSync operation mode allows a two-wire circuit to provide the ability to activate both the horn and strobe on the same NAC and then allow the horn to be silenced while the strobe remains flashing. The horn operates as “on-until-silenced” while the strobe operation is “on-until reset.”

Features / Specifications

• Regulated circuit design ensures consistent flash output and provides controlled inrush current
• Control is compatible with Simplex SmartSync two-wire operation
• Rugged, high-impact, flame-retardant thermoplastic housings available in red or white with a clear lens
• Operation is compatible with ADA requirements
• Xenon strobe with intensity selectable as 135, 177, or 185 candela; visible selection jumper is secure behind strobe housing
