Description

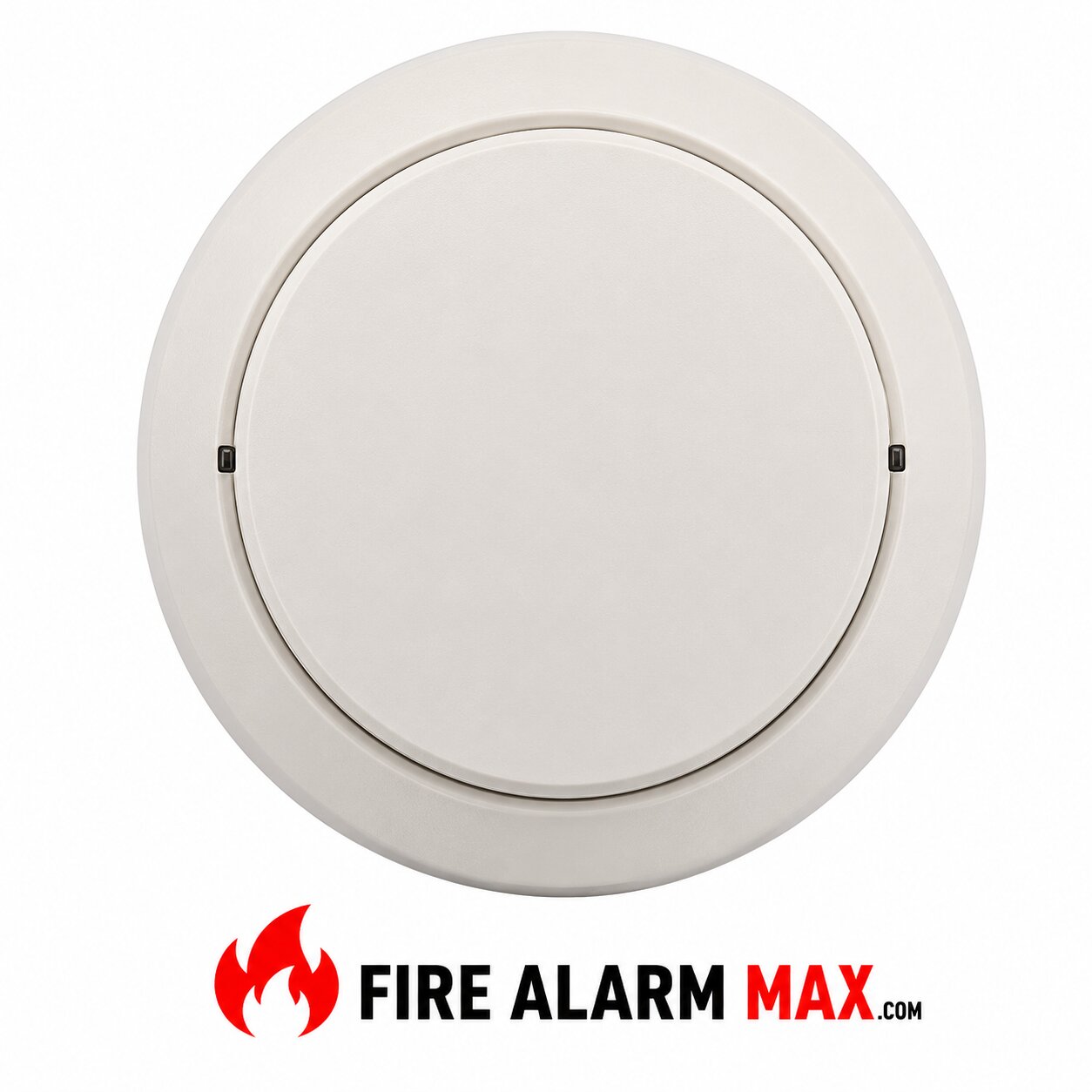

Silent Knight IDP-PHOTO-IV Intelligent Plug-in Photoelectric Smoke Sensor (Ivory) compatible with Flash Scan and also CLIP protocol systems.

Silent Knight IDP-PHOTO-IV are plug-in type smoke sensors that combine a photoelectronic sensing chamber with addressable-analog communications.
The sensors transmit an analog representation of smoke density over a communication line to a control panel. So rotary dial switches are provided for setting the sensor’s address.

Two LEDs on the sensor are controlled by the panel to indicate sensor status. Otherwise, an output is provided for connection to an optional remote LED annunciator.

The sensor can be tested in the following ways:
A. Functional: Magnet Test (P/N M02-04-01 or M02-09-00).

B. Smoke Entry

COMPATIBLE FACPs:

— IFP-1000 Intelligent Fire Panel and also IFP-100 Intelligent Fire Panel

— IFP-50 Intelligent Fire Panel

COMPATIBLE IDP-SERIES BASES and ACCESSORIES:

— B300-6-IV 6″ Flanged mounting base

— IDP-6AB 6” Mounting Base and also SSB501 4” Mounting Base

— SSB224BI 6” Isolator Base and also SSB224RB 6” Relay Base

— SSB501BHT 6” Temporal Sounder Base

— SSRA400Z Remote LED Annunciator.

— SSRMK400 Recessed Mounting Kit. Provides a low profile for use with SSB501.

— SSXR2B Detector Removal Tool. A removal and replacement tool for IDP plug-in detectors. Includes the SST55-127-000.

— SSM02-04-01 Detector Test Magnet.

— SSM02-09-00 Test Magnet with Telescoping Handle.

— SSXP-4 Extension Pole for SSXR2B. Extends from 5 – 15 ft.

— SST55-127-000 Detector Removal Head.

— SSBCK-200B Black Detector Kit. For IDP-series detectors.

Download the Specification sheet in *.pdf format
