Description

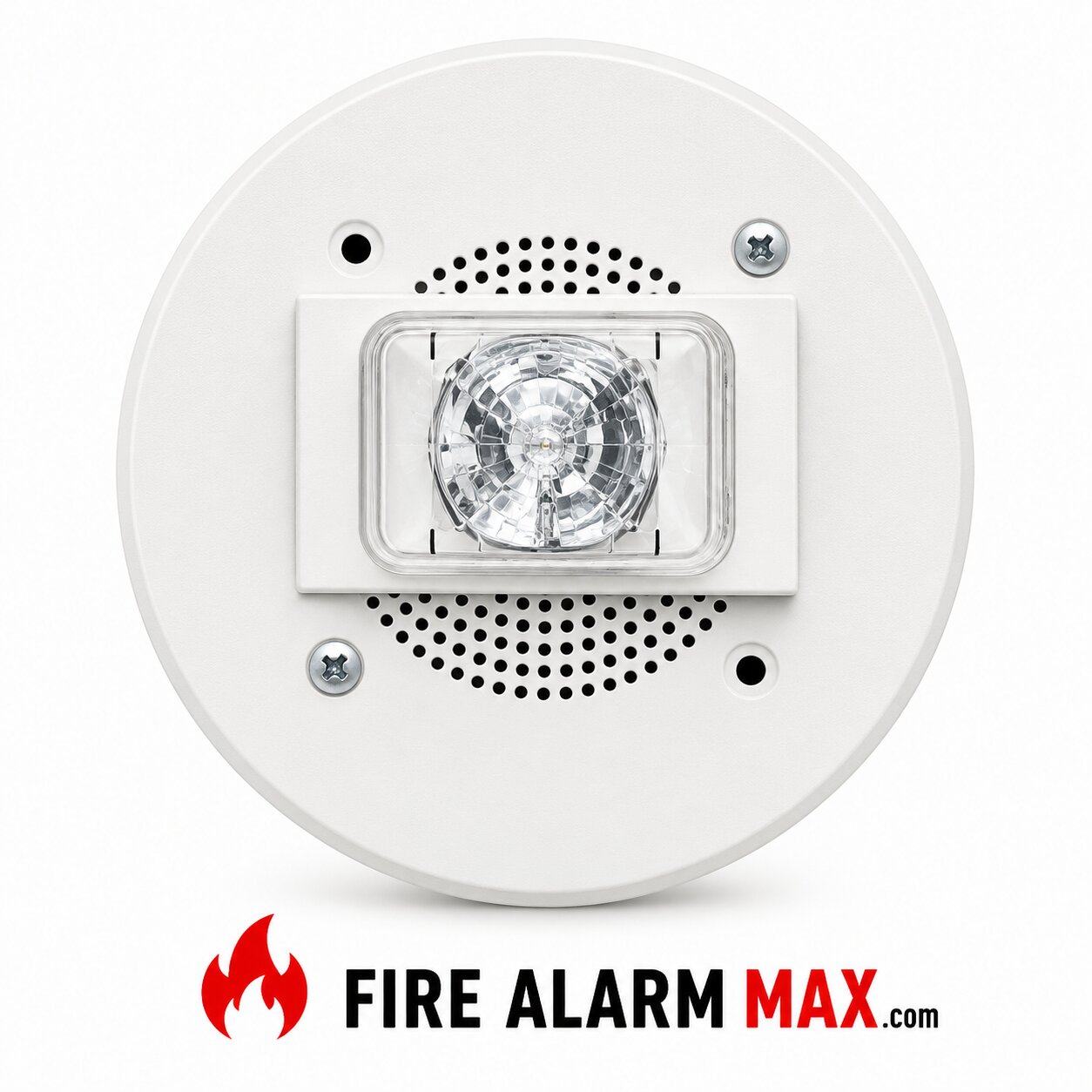

The Siemens I-SM70-S17S-C speaker strobes provide an economical solution to your sound needs. W hen ordered with strobes, these units a re designed for ADA applications. And meet the latest requirements of NFPA 72 (the National Fire Alarm Code). And UL 1971 standards for signaling devices for the hearing impaired.

The Siemens I-SM70-S17S-C speaker i s mounted in a standard 4-inch* square box (FIB). FBX-S and FBX-SF surface box, or FBDM bi-directional pendant housing. And i s available in flush, surface, or ceiling mount versions. The 25-volt and 70-volt models both have taps for 0.25, 0.50, 1.0, or 2.0 watts. A wire screw terminal block for up to 12 gauge wire i s supplied on each unit. Standard wall models are red, the ceiling is white.

All strobe versions utilize a Xenon flash tube with solid-state circuitry for maximum reliability and efficiency. Strobes are available in 15, 15/75, 75, and 110 Candela ratings with various mounting configurations. The strobe lens has a bottom material made of white Lexan® with 5/8” red “FIRE” letters. The top of the strobe has a rounded dome shape made of clear Lexan®.

The S75 version offers a 75 cd polar output that meets ADA requirements for regularly lighted public areas.

Features / Specifications

• Low Profile, No Extension Ring Required
• Mounts in Standard 4-inch Square, 1-½ inch Deep Box*
• ADA/UL 1971 Horn-Strobe Available
• Flush, Surface, or Ceiling Mount
• Flush & Surface Models Available in Red or White
• Selectable Wattage Taps, ¼ to 2 Watt
