Description

Overview

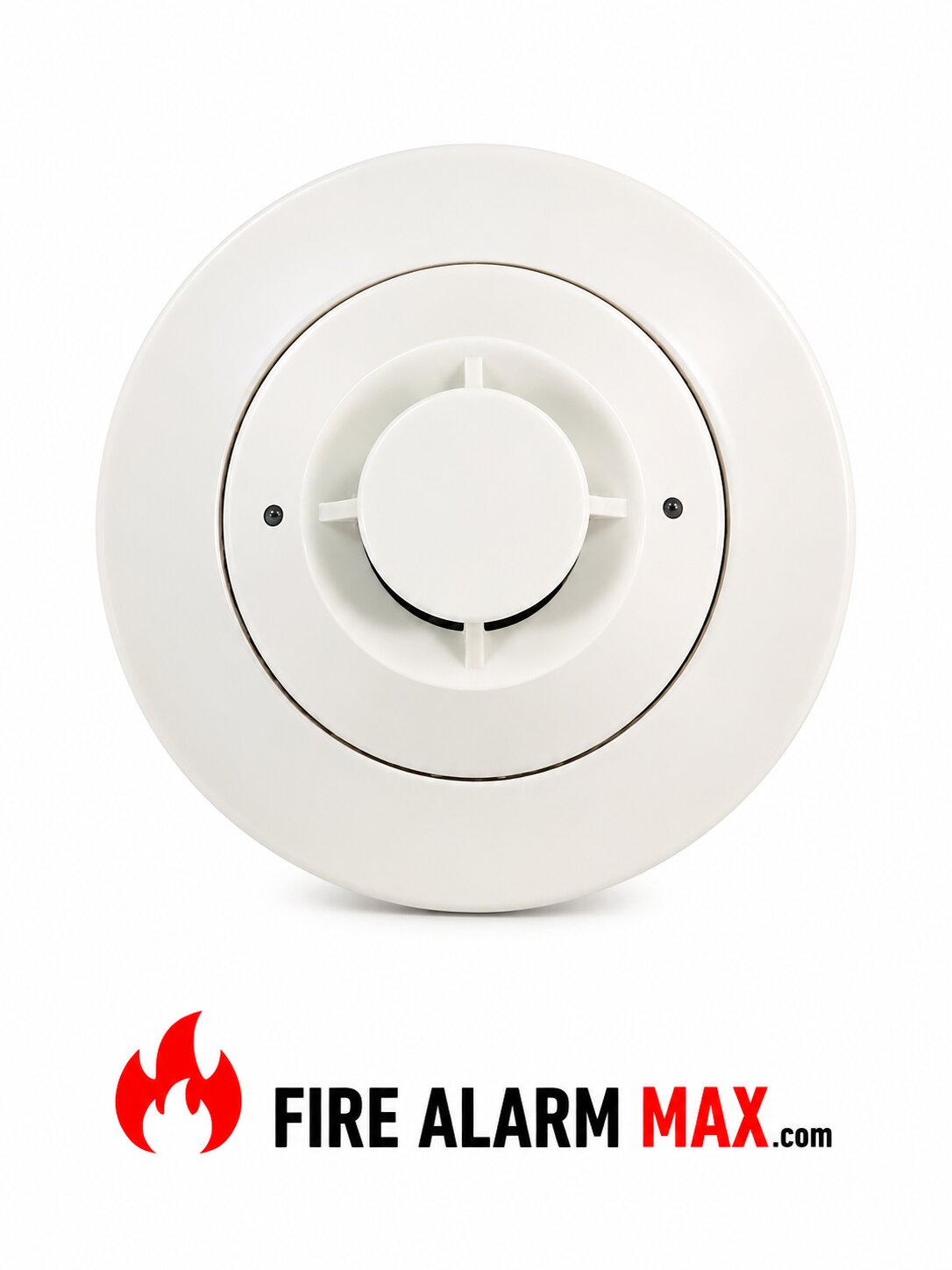

The Notifier NI-100 is an intelligent, addressable ionization smoke detector designed for use with Notifier’s FireWarden Series fire alarm control panels. Utilizing a state-of-the-art ionization sensing chamber, it provides reliable open-area protection by detecting products of combustion. Its low-profile, plug-in design simplifies installation and maintenance.

Key Features

• Advanced Ionization Sensing: Employs a unipolar ionization chamber for rapid response to a wide range of fire conditions.

• Dual LED Indicators: Features two LEDs to provide a local visible indication of the detector’s status.

• Tamper-Resistant Design: Includes a built-in tamper-resistant feature to prevent unauthorized removal.

• Plug-In Mounting: Utilizes a detachable mounting base (e.g., B210LP) for easy installation and servicing.

• Compatibility: Exclusively used with FireWarden Series addressable fire alarm control panels.

• Environmental Tolerance: Withstands air velocities up to 1,200 feet per minute without triggering false alarms.

Specifications

• Voltage Range: 15–32 VDC

• Standby Current: 300 µA at 24 VDC

• Alarm Current: 6.5 mA at 24 VDC

• Air Velocity Tolerance: Up to 1,200 ft/min (6.1 m/s)

• Operating Temperature Range: 32°F to 120°F (0°C to 49°C)

• Humidity Range: 10% to 93% non-condensing

• Mounting Base: B210LP (included)

• Dimensions: 2.0″ (5.1 cm) high; base diameter varies by model

• Weight: Approximately 0.5 lbs (0.23 kg)

Applications

Ideal for commercial, industrial, and institutional settings, the Notifier NI-100 provides early detection of fires, enabling prompt response and potentially reducing property damage. Its compatibility with FireWarden systems ensures seamless integration into existing fire alarm infrastructures.

Download the Specification sheet in *.pdf format
