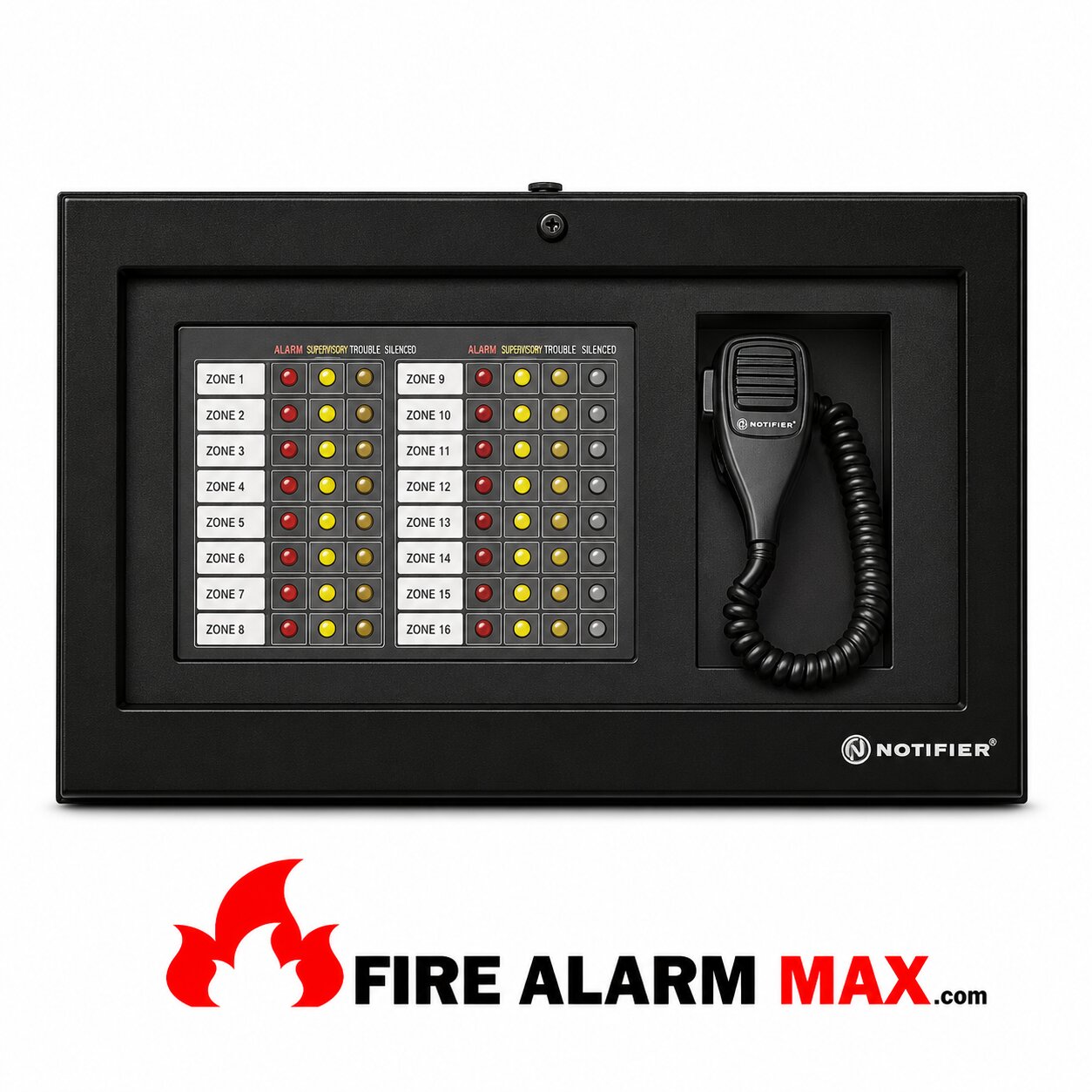

Notifier CAB-RP Cabinet For DVC-RPU
The DVC-RPU – a digital Remote Paging Unit for applications. Require a compact remote paging station for emergency, fire, or general paging. Initiation of automatic messages, vectored pages, and control capabilities for up to 24 points. One or many DVC-RPUs can – installed on the Digital Audio Loop of a DVC, each taking up one DAL address. Large systems can – configured with hundreds of DVC-RPU stations using multiple DVCs on NOTI•FIRE•NET™. The use of wire media – supported by the base product. Multi-mode fiber, single-mode fiber, or hybrid combinations – configured using DS-FM series fiber conversion modules.
The CAB-RP(R) – intended for MNS/ECS applications that call for a small, wall-mounted cabinet. Alternate solutions – configured using CAB-4 series cabinets.
DVC Programming for associated DVC-RPUs – accomplished using VeriFire® Tools version 6.7 or higher.
Up to three programmable message priority levels determined by site programming. Used to allow high-priority emergency pages to override lower-priority general pages.
Electrically isolated digital audio ports for direct connection with up to 32 Digital Audio Loop (DAL) devices. Style 4 or 7.
Optional DS-RFM, DS-FM, and DS-SFM fiber modules may – used. To convert one or both Digital Audio Ports for operation with single-mode or multi-mode fiber.
Up to 32 DVC-RPUs – supported per DVC. Each DVC-RPU assumes one DAL address.
Distribution via NOTI•FIRE•NET™ of one channel of standard-level paging audio on NOTI•FIRE•NET™.
Configured with the CAB-RP(R) and CMIC-RP to create a small wall-mounted remote paging station with control functions.
CAB-RP(R) cabinet includes provisions for custom labeling.
Labels included with each DVC-RPU (for use with AHJ approval) are “MASS NOTIFICATION” and “HVAC EMERGENCY SHUTDOWN.”
Installation Options
The DVC-RPU – installed in a CAB-RP(R) cabinet with a CMIC-RP microphone and well. The CABRP(R) has provisions for mounting an STS-200 tamper switch.
Notifier CAB-RP Cabinet For DVC-RPU
| Weight | 15 lbs |
|---|---|
| Dimensions | 24 × 14 × 7 in |
