Description

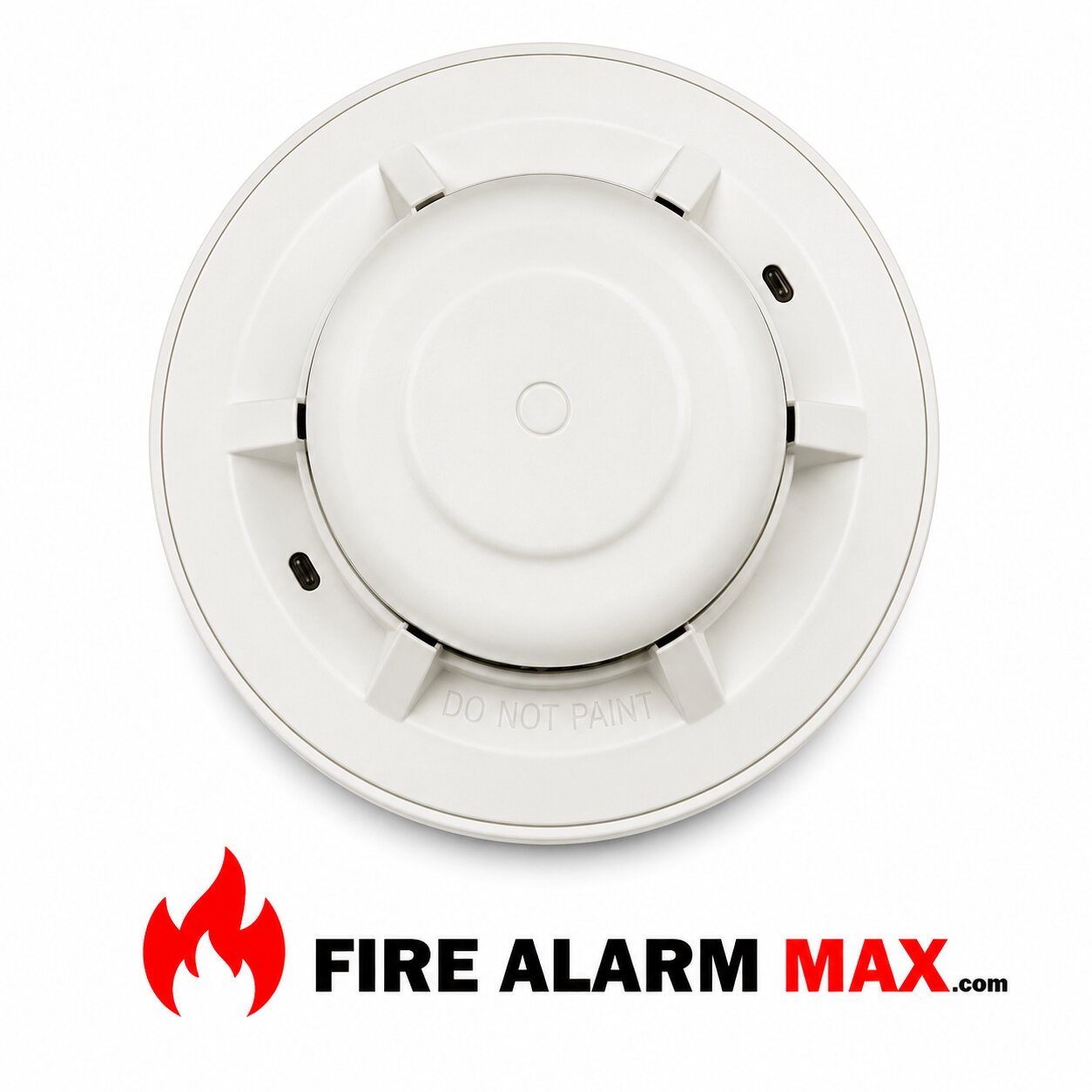

Honeywell 5809SS is a wireless heat and rate-of-rise temperature sensor that offers expandable fire detection and installation flexibility. The 5809SS is ideal for hard-to-wire locations and also applications that require more than smoke detection for alarm systems that support Honeywell’s 5800 series devices. This is a fast and easy install with no wires to run. The 5809SS contains a built-in temperature sensor, which will signal an alarm if the environmental temperature rises above 135°F (57°C), and it also incorporates an additional rate-of-rise temperature sensor. So, fires typically cause a rapid rise in temperature in the surrounding area. Honeywell 5809SS’s rate-of-rise thermostat senses the temperature rise and signals an alarm if the increase is 15°F (8°C) or more per minute. The 5809SS is UL-listed (UL 521)and CSFM-approved for commercial and residential applications.

Please note, Honeywell 5809SS is a wireless heat and rate-of-rise temperature sensor that offers expanded fire detection and also an installation flexibility. The 5809SS is ideal for hard-to-wire locations and also applications that require more than smoke detection for alarm systems that support Honeywell’s 5800 series devices. will be permanently damaged if stored or installed in environments where the temperature exceeds 100°F (38°C). If the metal disc is detached, the detector has exceeded 135°F (57°C) it must be replaced. Heat detectors should be used for property protection. Reliance should not be placed solely on heat detectors for life safety. When life safety is involved, smoke detectors must also be used. The 5809SS detectors must not be painted, the unit must stay dry, and is for indoor use only. If the fix sensor activates due to the temperature, the detector must be replaced.

Product Features:

• Contains a built-in transmitter that can send alarm, supervisory, and battery condition messages to the system’s receiver/control unit
• Powered by a three-volt lithium battery. If the battery voltage gets too low, the 5809 sends a low battery signal to the control panel
• Has a tamper switch, which causes a trouble signal to be sent to the control if the unit is removed from the mounting base
• UL Listed for Commercial (when using 5881EH Receiver) or Residential applications
• Mounts on the ceiling or wall for maximum installation flexibility
• 135°F Fixed temperature sensor
• Rate of Rise – 15°F per Minute @ <100°F
• UL 521 commercial/residential applications
• CSFM commercial/residential applications
• Includes a 3V lithium battery

Download the Specification sheet in *.pdf format
