Description

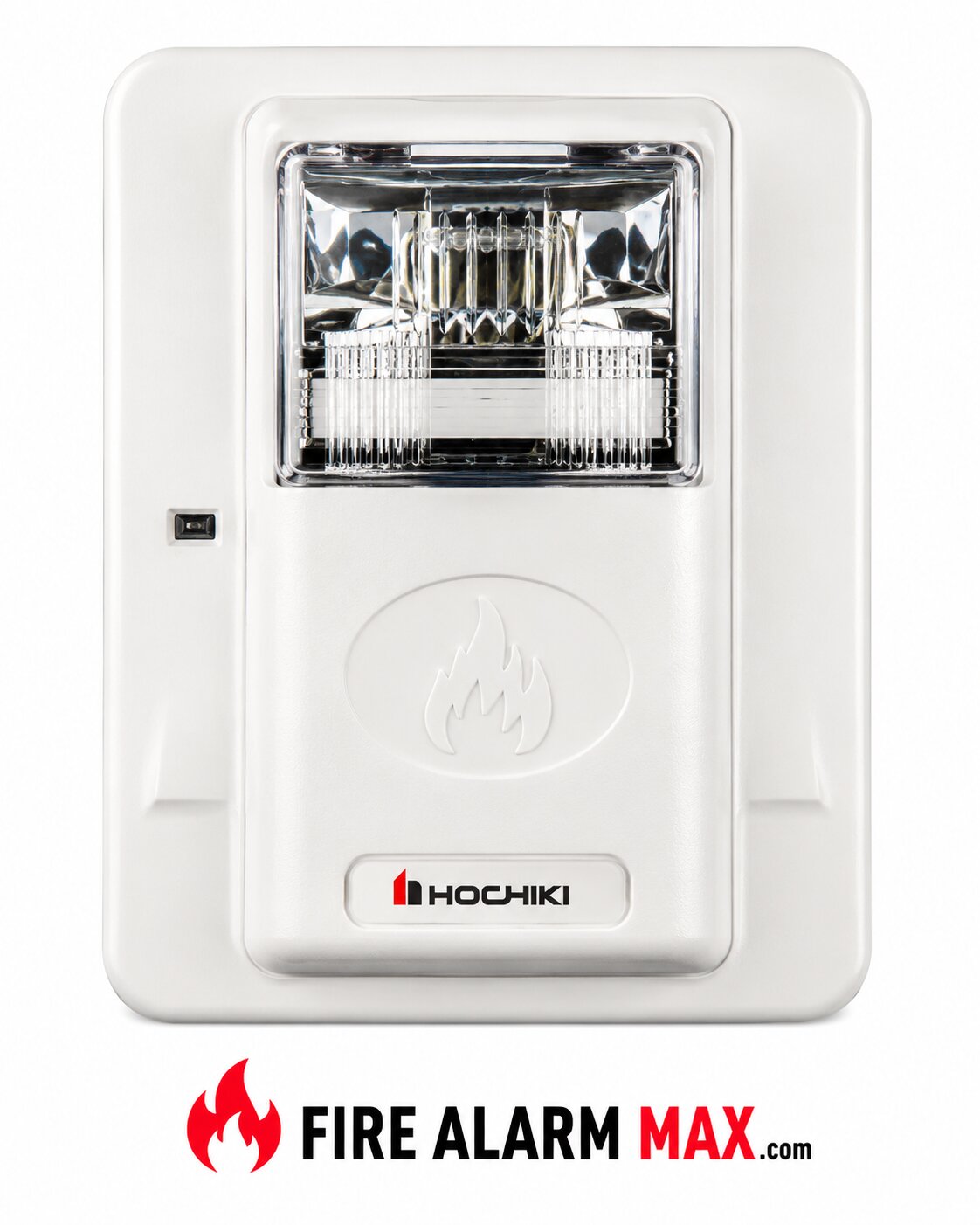

The Hochiki HES24-177WW is a low-profile strobe combination that offers dependable audible and visual alarms and the lowest current available. Also, the HE Series 24VDC offers tamperproof field selectable candela options of 15, 30, 60, 75, and 110 candelas. The 12VDC models offer tamperproof field selectable candela options of 15, 30, 60, and 75 candelas. Besides, the HE Series horn offers a continuous or synchable temporal three in 2400Hz and mechanical tone, a chime, and whoop tone. All tones are easy for the professional to change in the field by using switches.

The Hochiki HES24-177WW series has a minimal operation current and has a minimum flash rate of 1Hz regardless of input voltage. Furthermore, the HE Series is shipped with the standard 4″ metal mounting plate which incorporates the popular Slide feature that allows the installer to easily test for supervision. The product also features a locking mechanism that secures the product to the bracket without any screws showing.

Features / Specifications

• Nominal voltage 12VDC and 24VDC
• 24VDC units have field selectable candela options of 15, 30, 60, 75, and 110 candela
• Unit Dimensions: 5″ high x 4.5″ wide x 2.5″ deep
• Prewire entire system, then install signals
• Lower installation and operating costs
• Input terminals supports 12 to 18 gauge wire
• Switch selection for high or low dBA
