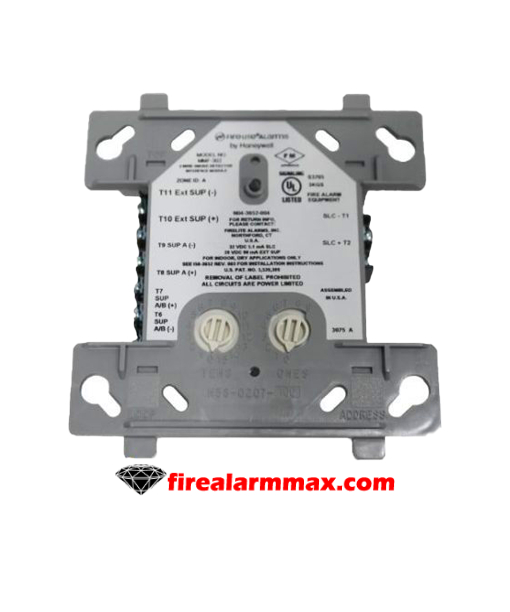

The Firelite MMF-302 Interface Module is intended for use in addressable two-wire systems, where the individual address of each module is selected using the built-in rotary switches. Also, this module allows addressable panels to interface and monitors two-wire conventional smoke detectors. Besides, it transmits the status (normal, open, or alarm) of one full zone of conventional detectors back to the control panel. All two-wire detectors being monitored must be UL compatible with this module. Furthermore, the Firelite MMF-302 has a panel-controlled LED indicator and can be use to replace an M302 module in existing systems.
In general, this information is include as a quick reference installation guide. Refer to the control panel installation manual for detailed system information. If the modules will be install in an existing operational system, inform the operator as well as local authority that the system will be temporarily out of service. Disconnect power to the control panel before installing the modules. In addition, the Firelite MMF-302 mounts directly to 4-inch square electrical boxes (see Figure 2). The box must have a minimum depth of 21⁄8 inches. Surface mounted electrical boxes (SMB500) are available.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
Your Payment information is processed securely. We do not store credit card details, nor have access to your credit card information.
Orders ship same day
Thousands of parts in stock
Reliable products & service
Order anytime, anywhere
The Firelite MMF-302 Interface Module is intended for use in addressable two-wire systems, where the individual address of each module is selected using the built-in rotary switches. Also, this module allows addressable panels to interface and monitors two-wire conventional smoke detectors. Besides, it transmits the status (normal, open, or alarm) of one full zone of conventional detectors back to the control panel. All two-wire detectors being monitored must be UL compatible with this module. Furthermore, the Firelite MMF-302 has a panel-controlled LED indicator and can be use to replace an M302 module in existing systems.
In general, this information is include as a quick reference installation guide. Refer to the control panel installation manual for detailed system information. If the modules will be install in an existing operational system, inform the operator as well as local authority that the system will be temporarily out of service. Disconnect power to the control panel before installing the modules. In addition, the Firelite MMF-302 mounts directly to 4-inch square electrical boxes (see Figure 2). The box must have a minimum depth of 21⁄8 inches. Surface mounted electrical boxes (SMB500) are available.
Features / Specifications
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
