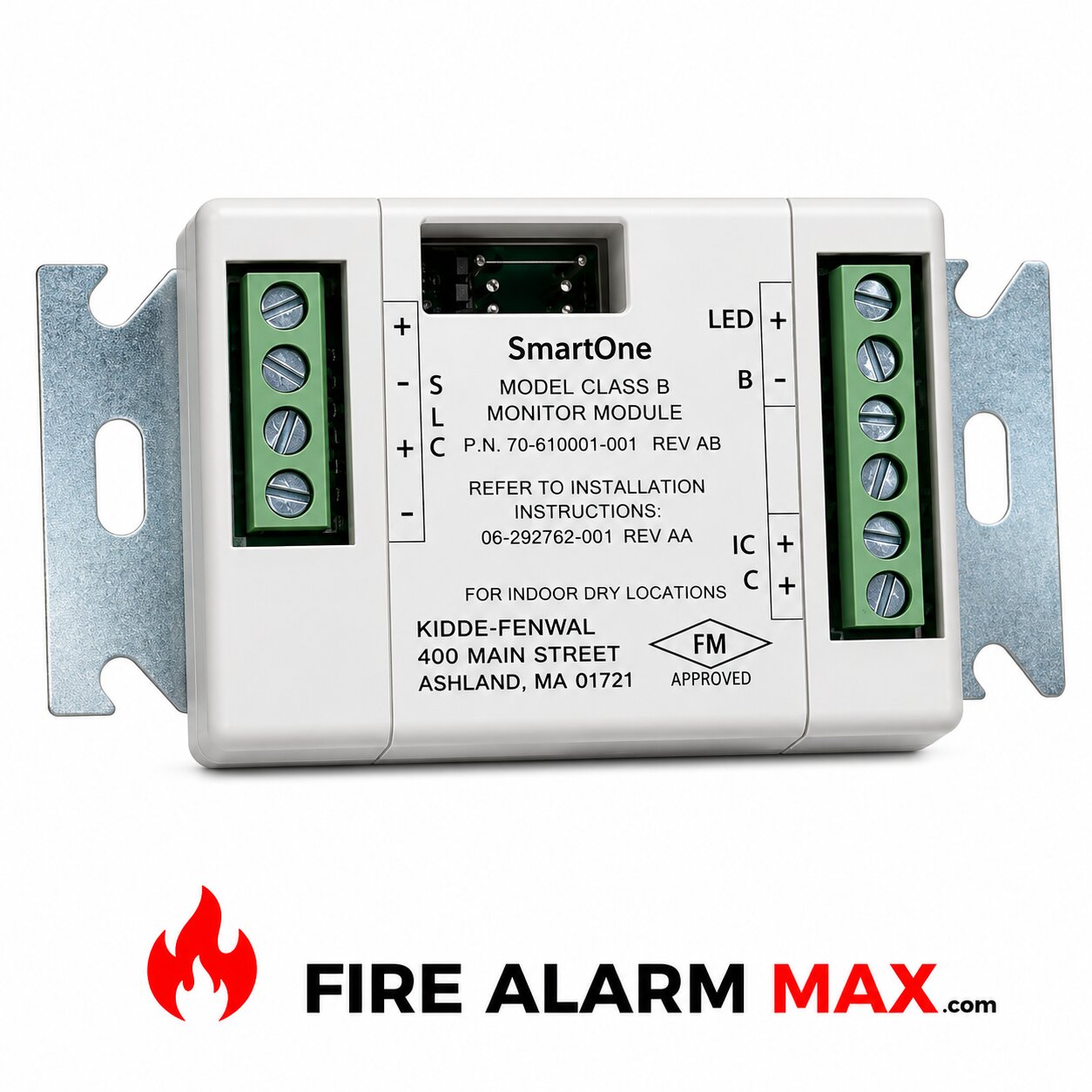

Fenwal 70-610001-001 Class B Addressable Input Module

Overview
The Fenwal 70-610001-001 Class B Addressable Input Module offers reliable monitoring of external devices in fire alarm systems. It efficiently converts devices like water flow switches and manual pull stations into addressable inputs. As a result, the fire alarm control panel can accurately pinpoint the specific device triggering the alarm, thus enhancing response times during emergencies.

Key Features

• Addressable Input: This module uniquely identifies each connected device, ensuring precise monitoring.
• Class B Circuit Compatibility: Specifically designed for Class B circuits, the module provides flexibility across various system configurations.
• Wide Application: This module can be used in commercial, industrial, and residential environments, offering broad adaptability.
• Easy Integration: The compact design ensures smooth installation with Fenwal fire systems, making setup quick and hassle-free.
• Durable Design: Built with robust materials, it offers reliable performance even in challenging environments.

Technical Specifications

• Model Number: 70-610001-001
• Circuit Type: Class B
• Power Source: Loop-powered
• Voltage: 15-32 VDC
• Current Draw: 300 µA (standby), 5 mA (alarm)
• Dimensions: Compact enough for standard fire alarm enclosures
• Compliance: Meets UL standards for fire alarm systems

Applications

The Fenwal 70-610001-001 is particularly versatile, being used in a variety of fire alarm system applications. For instance, it monitors:

• Water flow switches
• Manual pull stations
• Smoke detectors and other contact devices

Advantages of the Fenwal 70-610001-001

By using addressable technology, this module allows the fire alarm system to detect the exact location of the triggered device. This ensures faster responses and reduces confusion during emergencies. Furthermore, it’s built to last, providing reliable operation even in harsh conditions.

Compliance and Safety Standards

This item complies with UL 864 and NFPA 72 standards, ensuring its reliability in fire alarm systems. Its ability to provide addressable inputs enhances the efficiency and accuracy of the entire fire system.
