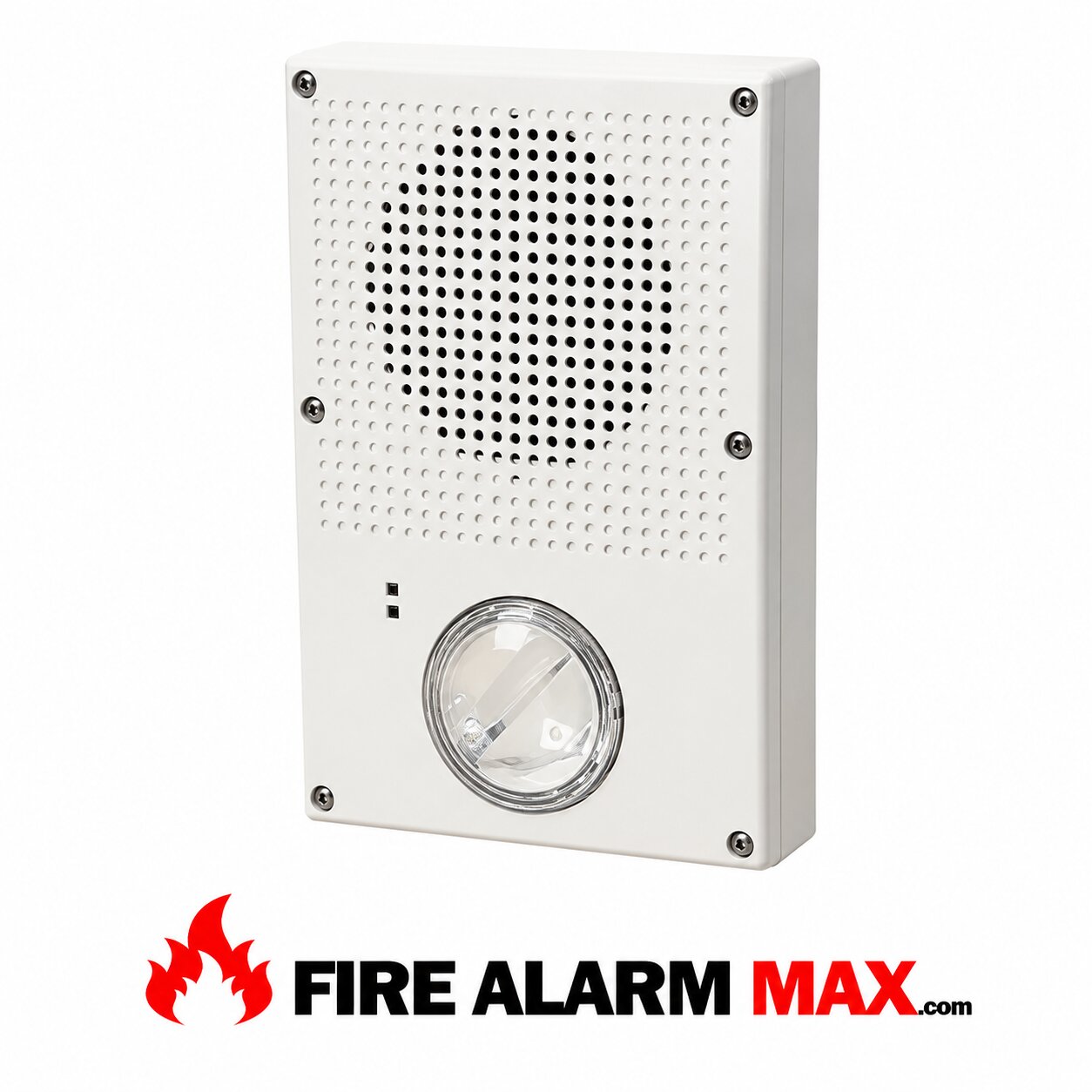

Edwards WG4WN-SVMC Genesis Series Speaker Strobe

The Genesis WG4 line of speakers and speakers-strobe appliances are audible-visible emergency signaling devices. Rated for indoor and outdoor use in a wide range of wet and harsh environment applications.
The Genesis WGW line features a full backplane sealing gasket for installation in recessed (in-the-pour/block) electrical boxes.
WG4 Series appliances have dual-voltage mylar-cone loudspeakers with field-selectable output taps and multi-candela strobes with standard and high output. Wattage and candela settings are viewable after installation through a sealed viewport display.
The strobes – designed to flash at the same rate.

Installation
Install this device with the latest edition of NFPA 72 and the local authority having jurisdiction.
WARNING: Electrocution hazard. To avoid personal injury or death from electrocution. Remove all sources of power and allow stored energy.

Remove the cover from the speaker by first removing the six cover screws.
If desired, place the optional trim skirt over the electrical box. See “Specifications” for a list of compatible boxes.
Remove the gasket that comes with the 449 weatherproof box. And replace it with the gasket that comes with the WG4 speaker.
The field wiring goes through the wire slots on the gasket and the backplate.
Secure the backplate to the electrical box with four screws.
Connect the wiring to the terminal strip.
Connect the speaker to the audio NAC. Observe polarity.
Set the speaker voltage.
The default speaker voltage is 70 V. For 25 V, reposition the speaker voltage selection switch S3.
Set the wattage.
The wattage default setting is Z, corresponding to 1/4 watt. To select a different wattage, align the S1 indicator to the desired wattage setting.
Test the unit for proper operation.
