Description

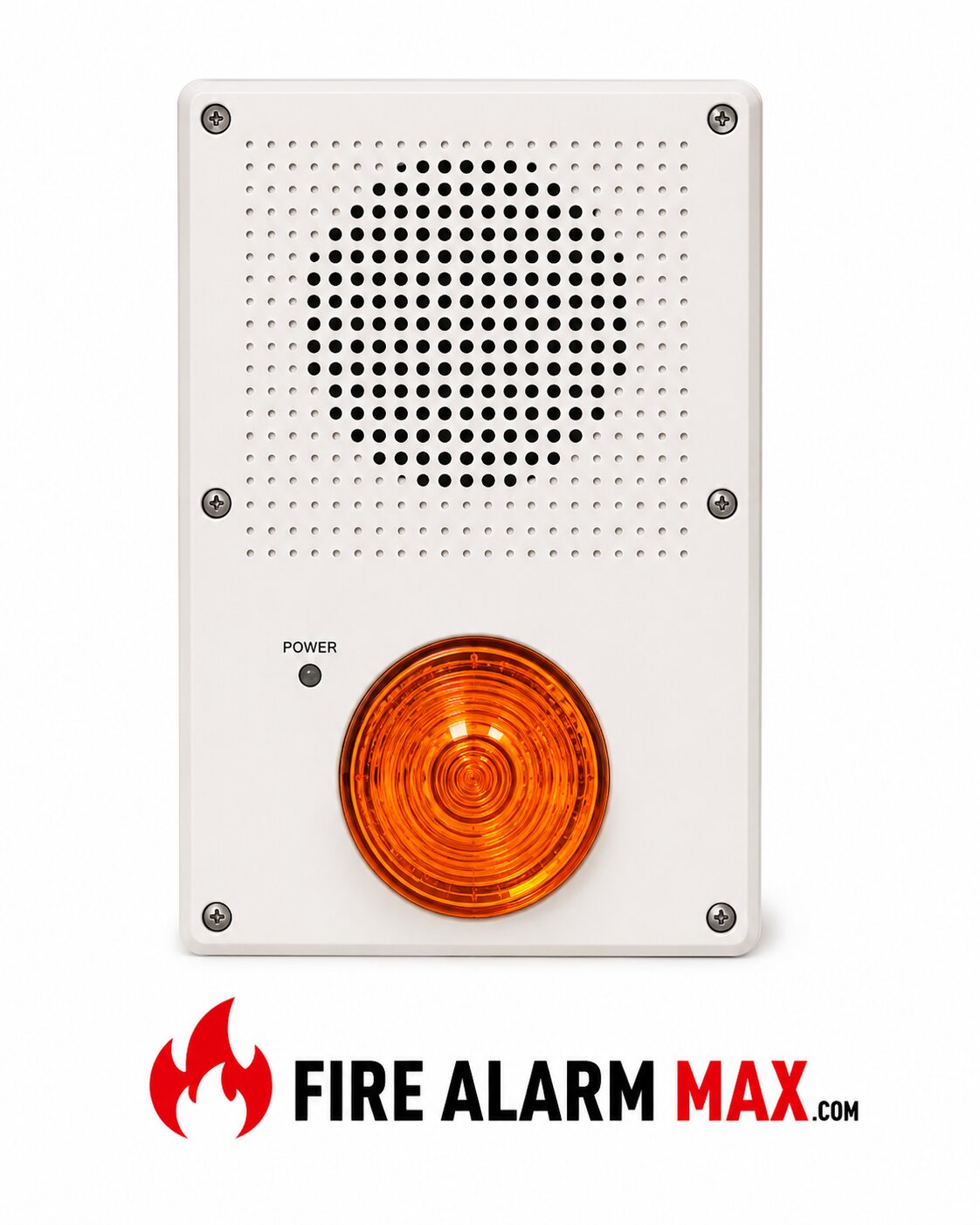

Edwards WG4WA-SVMA speaker-strobe appliance i s among the most versatile emergency appliances of its kind. Rated for indoor or outdoor use, they a re suitable for a wide range of wet. And harsh environments with a listed operating temperature range. Of as low as -31°F to as high as 151°F (-35°C to 66°C).

Field-configurable light and sound output settings add to their onsite flexibility. Optional FIRE or ALERT markings and colored lenses make them ideal for emergency communications/ mass notification (ECS/MNS). Or fire alarm applications.

These appliances a re suitable for indoor and outdoor applications and a re ideal for challenging conditions. Like parking garages and process areas. They a re listed for mounting on the ceiling or the wall. And thanks to an ingenious full backplane sealing gasket,  can b e installed to recessed (in-the-pour/block) electrical boxes. WG4 signals mount to suitable surface boxes served by raceways. Optional color-matched trim skirts provide a clean, finished appearance. All appliance wiring i s accomplished room-side for easy installation.

Edwards WG4WA-SVMA appliances feature highly intelligible and efficient mylar-cone loudspeakers. These are dual-voltage (25.2V or 70.7V), and have field-selectable output taps ranging from 80.8 dBA to 90.0 dBA.

Features / Specifications

• Outdoor and indoor-rated
• Low-profile design
• Wall or ceiling mount
• Room-side wiring accepts 18 to 12 AWG (0.75 to 2.5 mm2)
• Wide operating temperature range
• Field-selectable speaker wattage, voltage, and strobe candela settings
• Field-configurable temporal strobe output option
