Description

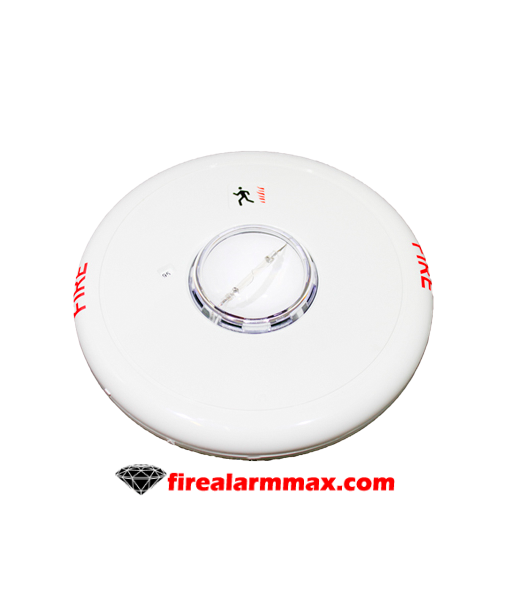

The Edwards EGCF-VMH Ceiling Strobe i s a visible fire alarm notification appliance designed for indoor ceiling mounts. The Edwards EGCF-VMH ceiling strobe includes a field configurable switch for selecting the desired candela output. The candela output setting i s locked in place and remains visible after the final installation.

The Edwards EGCF-VMH strobe features an enhanced synchronization circuit to comply with the latest requirements. Of UL 1971 Signaling Devices for the Hearing Impaired and the latest Canadian standard CAN/ULC S526-02. The synchronized operation requires a separately installed synchronization control module.

Install this device according to applicable requirements in the latest editions of the NFPA codes. And standards and Canadian Electrical Code, Part 1, Section 32, CAN/ULC S524- 01.

Features / Specifications

• Operating voltage: 24 Vdc or 24 Vfwr, nominal
• Light output: Selectable at 95, 115, 150, and 177 cd
• Wire size: 12 to 18 AWG (2.50 to 0.75 sq mm)
• Temperature: 32 to 120 °F (0 to 49 °C)
• Humidity: 0 to 93% RH, noncondensing at 90 °F (32 °C)

EGCF-VMH Ceiling Strobe i s a visible fire alarm notification appliance designed for indoor ceiling mounts. EGCF-VMH ceiling strobe includes a field configurable switch for selecting the desired candela output. The candela output setting i s locked in place and remains visible after the final installation.

EGCF-VMH strobe features an enhanced synchronization circuit to comply with the latest requirements. Of UL 1971 Signaling Devices for the Hearing Impaired and the latest Canadian standard CAN/ULC S526-02. The synchronized operation requires a separately installed synchronization control module.

Install this device according to applicable requirements in the latest editions of the NFPA codes. And standards and Canadian Electrical Code, Part 1, Section 32, CAN/ULC S524- 01.
