Description

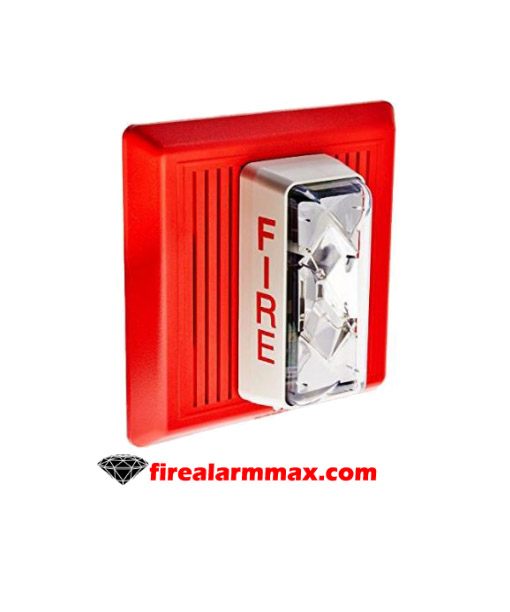

Edwards Est 757-7A-RS70 Speaker Strobe is a high-quality appliance for emergency voice communications, as well as alert and alarm tone signals.

In fact, integrity’s rugged plastic housing is made from durable and fire retardant, high-impact plastic with a slightly textured surface. Housings are rate for outdoor use and are available in red or white. Integrity’s ingenious mounting plate firmly holds the device in place with a single screw. Besides, this ensures quick and attractive installation. A separate trim plate is not require. Furthermore, speaker terminals accept up to #12 AWG (2.5mm²) wire for polarized connections. Strobe connections are made to color-coded wire leads

In general, Life safety Edwards Est 757-7A-RS70 strobes come shipped with standard wall mount style FIRE lens markings. Where ceiling orientation, other languages, or different lens markings are require, Also, Edwards offers optional LKW and LKC series Lens Marking Kits. These optional lens markings simply snap onto the strobe. Consult EDWARDS for the availability of special lens markings.

Integrity strobes come designed for 16 to 33 Vdc operation and must be connect to signal circuits that output a constant (not pulsed) voltage. A diode is use to allow full signal circuit supervision.

Features / Specifications

• UL 1971-listed synchronizing strobe
• Genesis-compatible
• ECS/MNS models available
• Listed for public and private mode applications
• 98 dBA Output
• Multiple Output Taps, 25 or 70 Volt Models
• Outdoor rated
• Field changeable field markings
