Description

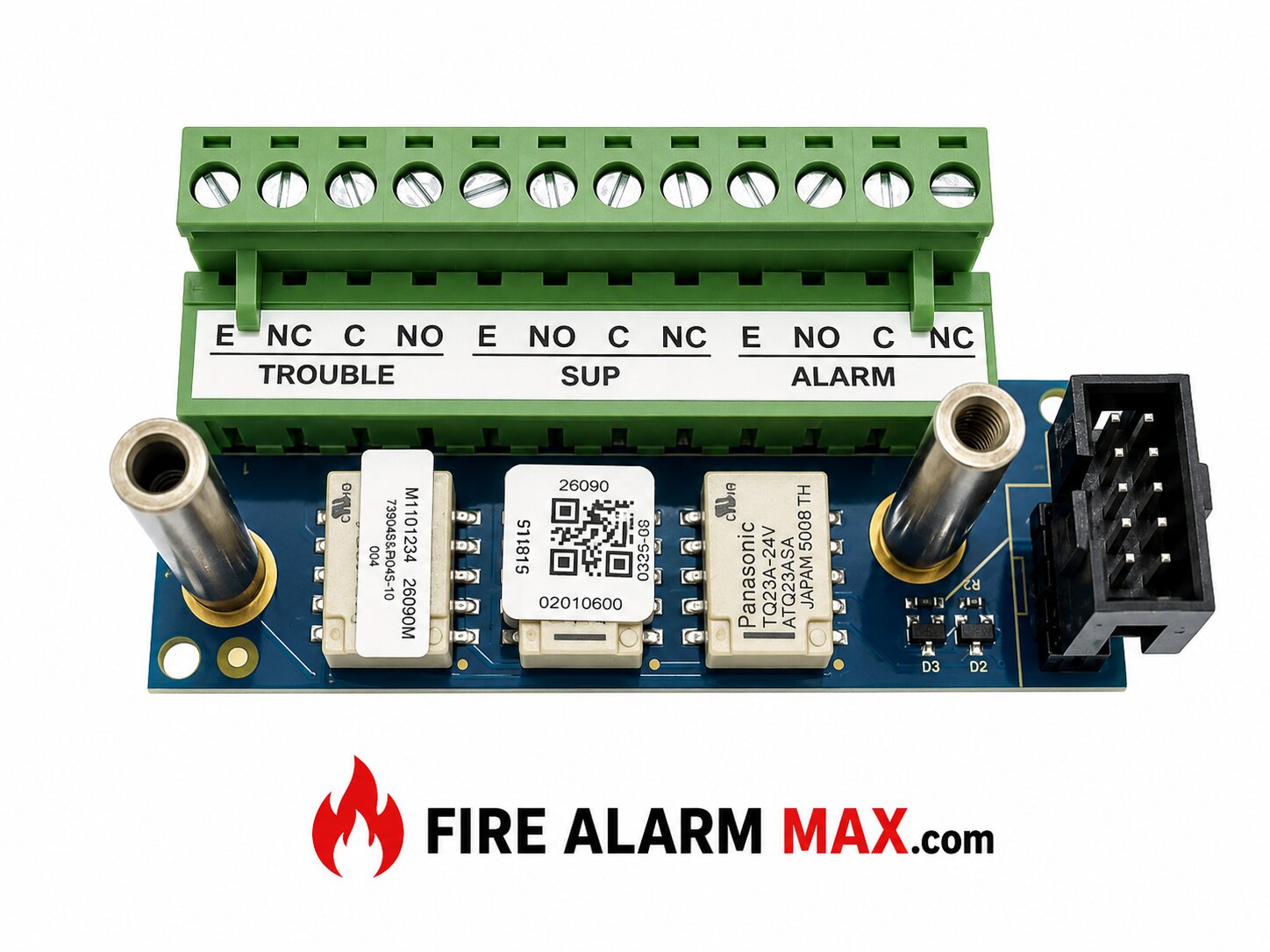

The Edwards 4-COMREL Common Relay Module is an intelligent system module designed for use with Edwards EST4 fire alarm and emergency communication systems. The Edwards 4-COMREL Relay Module provides common alarm, common trouble, and common supervisory relay outputs that allow external equipment to interface with the fire alarm control system. Therefore, it simplifies system integration while providing reliable status reporting for critical building functions.

Edwards 4-COMREL Relay Module Function

The Edwards 4-COMREL Relay Module provides three dedicated common relay outputs for alarm, trouble, and supervisory conditions. As a result, external devices can receive system status information without requiring individual programming for each event. In addition, the module supports reliable signal transmission to auxiliary building systems.

Common Alarm, Trouble, and Supervisory Outputs

This module is specifically designed to monitor overall system conditions. Consequently, connected equipment can respond immediately when a fire alarm, supervisory event, or system trouble condition occurs. Moreover, these relay outputs simplify integration with monitoring systems, building automation equipment, and auxiliary control functions.

EST4 System Integration

The Edwards 4-COMREL Relay Module is designed for use within the EST4 platform. Therefore, it integrates seamlessly into the EST4 architecture and supports centralized system management. Furthermore, it provides a straightforward method for extending system status information to external devices.

End-of-Line Resistor Connections

The module also provides dedicated connections for end-of-line resistors. As a result, supervised external circuits can be monitored properly for integrity and fault conditions. Additionally, this feature helps maintain reliable communication between the fire alarm system and connected devices.

Durable and Reliable Design

Built for life safety applications, the 4-COMREL is engineered to provide dependable long-term operation. Therefore, it supports critical alarm reporting functions in commercial, healthcare, educational, and industrial environments. Moreover, its compact design allows efficient installation within EST4 cabinets.

Applications

The Edwards 4-COMREL Relay Module is ideal for:

• EST4 fire alarm systems
• Building automation interfaces
• Remote monitoring systems
• Security integrations
• Supervisory signal reporting
• Commercial and industrial facilities

Reliable Common Relay Interface Solution

The Edwards 4-COMREL Relay Module combines alarm, trouble, and supervisory relay outputs in a single module. Overall, it enhances EST4 system integration by providing dependable relay-based communication for external monitoring and control applications.

4-COMREL Datasheet
