Description

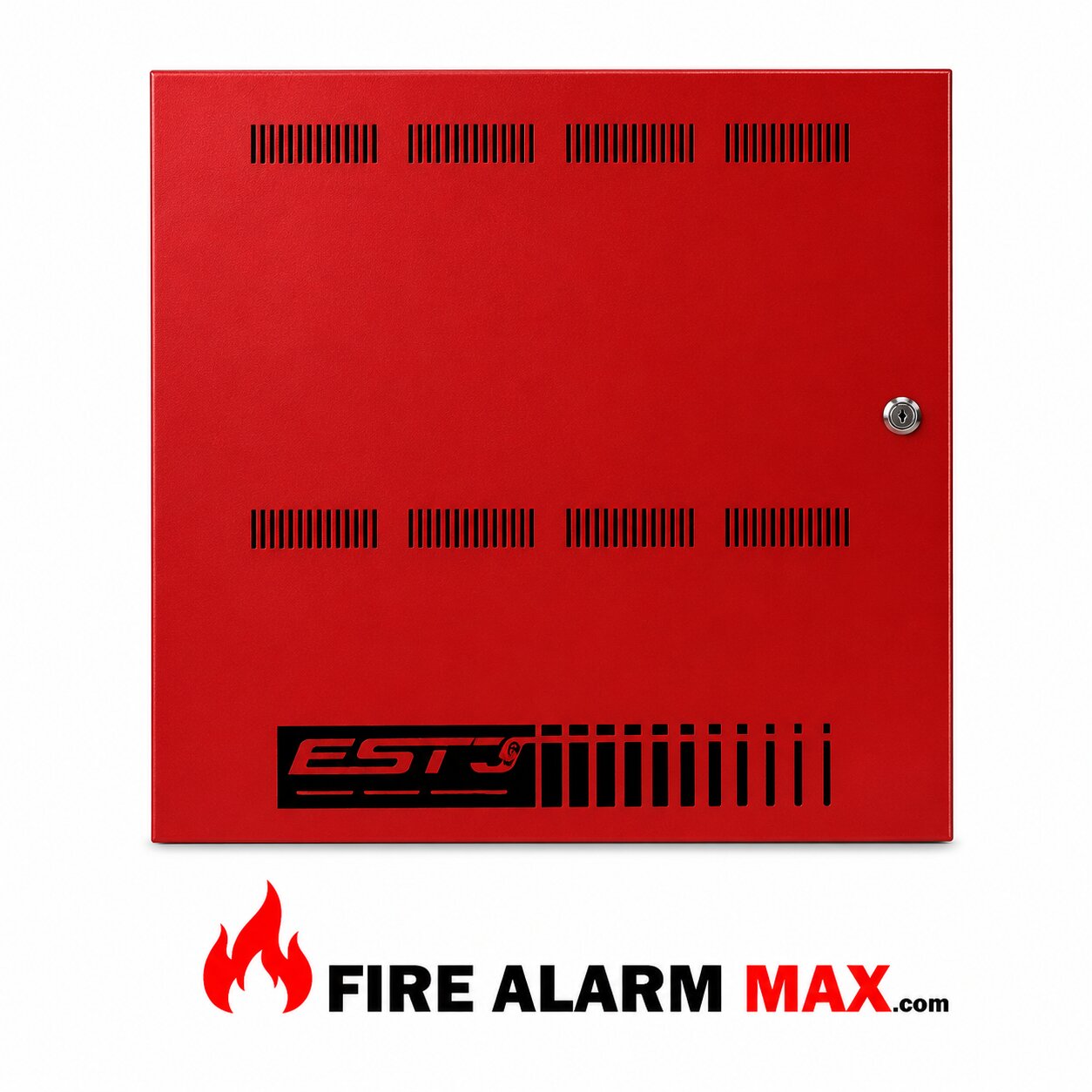

Edwards 3-RCC7R Remote Closet Enclosure

EST3 has a wide selection of cabinet arrangements allowing the greatest use of EST3’s flexible modular design. Lobby enclosure wall boxes – manufactured from #14 AWG cold rolled steel with a gray baked enamel finish. Lobby enclosure doors – manufactured from #14 AWG cold rolled steel. And have a modern contoured door design with an integral viewing window. The exception is the small lobby enclosure 3-CAB5. The 3-CAB5 wall box and non-contoured door – #16 AWG cold rolled steel. Lobby enclosure doors come with gray-baked enamel or optional red-baked enamel finishes. The EST3 lobby enclosures back boxes, doors, and chassis units – ordered and shipped separately. The 3-CAB5 lobby enclosure comes complete with a door and back box providing space to mount five local rail modules.

The EST3 remote closet cabinet design allows the installation of control panel electronics in electrical closets. The remote closet cabinets have left-hand hinged doors and are available with a red finish only. Optional display modules used for system diagnostics display. Mount behind the closet cabinet door and – not visible with the door closed.

Edwards 3-RCC7R Remote Closet Enclosure

Standard Features
Right or left-hand hinging of doors
Lag and Keyway holes for quick mounting
Attack-rated door for security applications
Knockouts for 3/4 inch conduit
Attractive contour door design on lobby enclosures
Combination flush or surface mounting lobby enclosure design
Remote closet cabinets for electrical closet mounting support up to 65 AMP hour batteries
Optional earthquake hardening: OSHPD seismic pre-approval for component Importance Factor 1.5
