Description

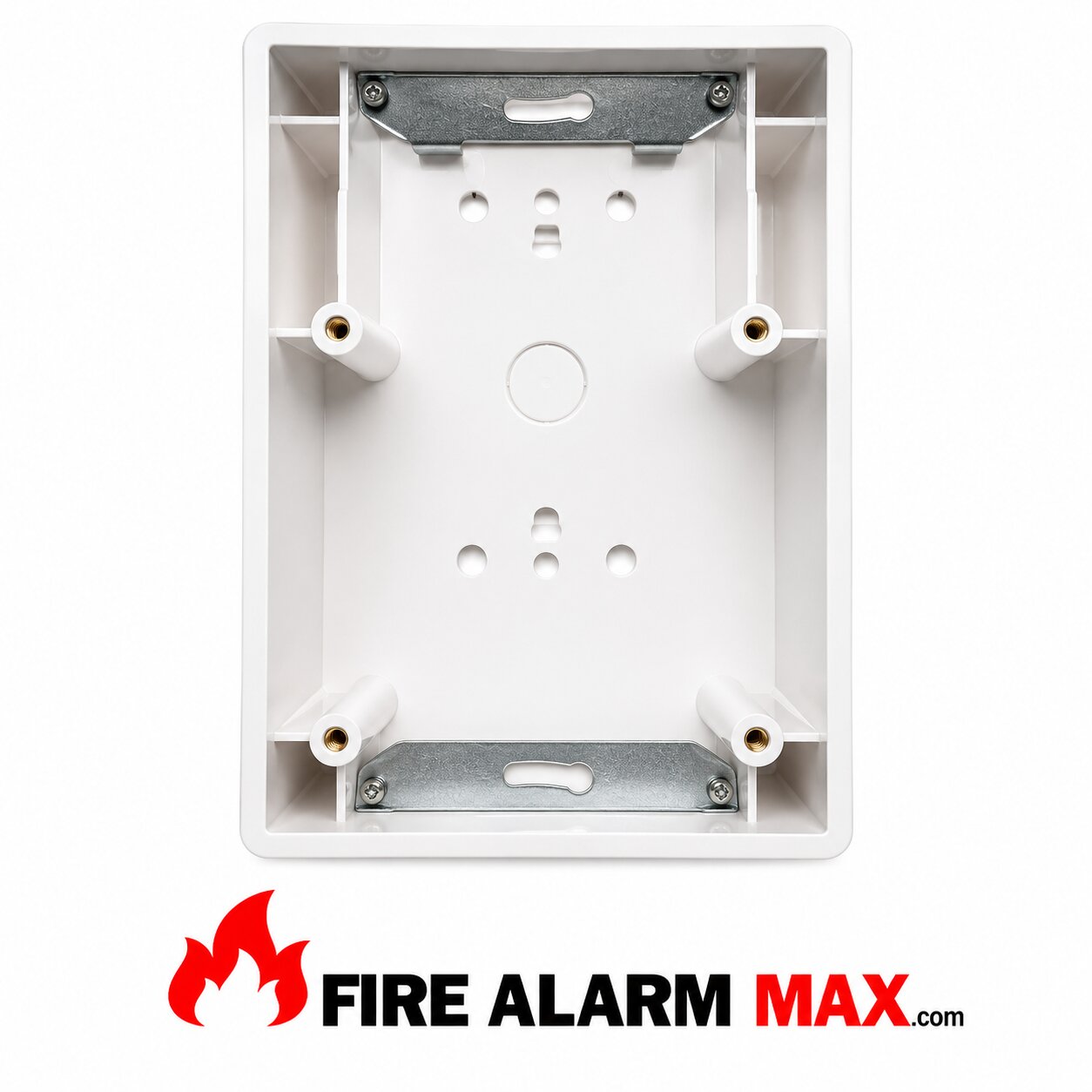

Cooper Wheelock E50SSB-W Backbox

The E50SSB-W from Wheelock is a White surface back box for the E50 Speaker Strobe. The E50 Speaker Strobe is a Semi-Flush  25/70 vrms, 1/8 – 2 watts, Speaker Strobe designed to provide a sleek, aesthetic appearance for emergency voice/alarm communications systems.

E50 Speaker Strobe features:

Approvals include UL Standard 1971, UL Standard 1480, New York City (MEA), California State Fire Marshal (CSFM), Factory Mutual (FM) and Chicago (BFP). See approvals by model in Specifications and Ordering Information

ADA/NFPA/ANSI compliant

Complies with OSHA 29 Part 1910.165

Wall mount speaker strobe models with field selectable candela settings of 15/30/75/110cd. Or 135/185cd (Multi-Candela models), or 1575cd (Single Candela model)

Field selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 2 watts

High-efficiency design for maximum output at minimum wattage across a frequency range of 400 to 4000 HZ

24 VDC strobes produce 1 flash per second with wide UL “Regulated Voltage” of 16 to 33 volts. Using filtered DC or unfiltered VRMS input voltage

Synchronize with Wheelock SM, DSM or Wheelock PS-12/24-8CP and PS-12/24-8MP Power Supply with built-in sync protocol

Mount to 4” square x 2-1/8” deep backbox with no extension ring required

Snap-on grille cover with no visible mounting screws

Fast installation with IN/OUT screw terminals using #12 to #18 AWG wires

Cooper Wheelock E50SSB-W Backbox
