Description

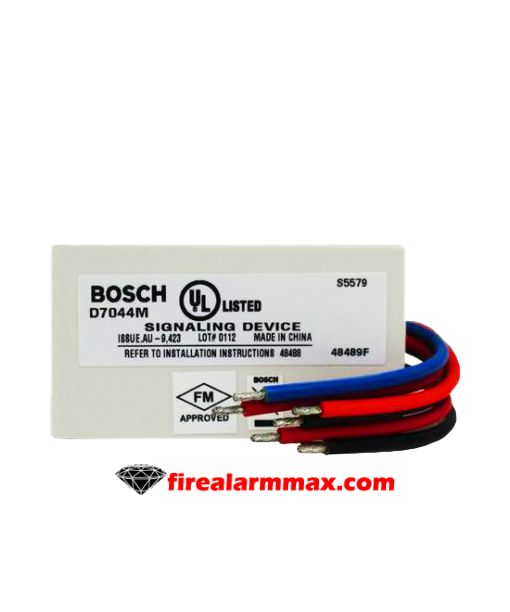

The Bosch D7044M Multiplex Mini Single Input Module is a general-purpose module that connects a contact device to the FACP’s multiplex bus with a supervised input loop. Additionally, the Bosch D7044M connects a normally open (NO) contact to the multiplex bus of a D7024, DS9400M, or FPD‑7024 and Addressable Fire Alarm Control Panel (FACP). Therefore, all operating power for the input module is drawn from the FACP. It also uses the module’s supervised input in a Class B configuration. Furthermore, rotary switches allow convenient address setting. Moreover, the module can be inserted in a single‑gang electrical backbox to which the device it is monitoring is attached. Also, connections for the module are made using the 16 AWG (ISO 1.5 mm2 ) flying leads from the device. All wiring is power limited and supervised.

Features / Specifications

• Operating Temperature: +32°F to +120°F (0°C to +49°C)
• Relative Humidity: Up to 93% non‑condensing
• Environment: Indoor, dry
• Color: White
• Input Type: One normally‑open (NO) contact input supervised by a 2.21 kΩ EOL resistor
• Address range: 9 to 255
• Mounting: Standard double-gang box
• Dimensions (L x W x H): 12 cm (4.7 in.) x 5 cm (1.97 in.) x 5 cm (1.97 in.)
