Description

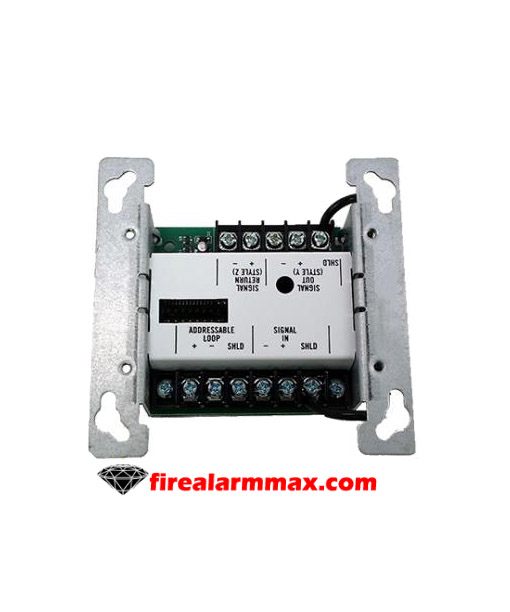

The Autocall A4090-9007 is a IDNet Addressable Signal IAM module. Also, this device is similar to the Simplex 4090-9007. For applications requiring additional individual NAC supervision and control, the Autocall A4090-9007 Signal IAM provides a 0.5 A remote NAC under host panel addressable point control. IDNet communications monitor the Signal IAM status and then connect the output NAC to the separate signal input for local alarm notification.

The Signal IAM also allows the control panel to use IDNet communications to control audio circuits from a compatible Autocall audio control panel. Only one signal source is use per Signal IAM, separate Signal IAMs would be require for control of DC-power appliances such as strobes.

Features / Specifications

•  Signal output notification appliance circuit (NAC) wire is supervise and connect to the signal input under IDNet communications control
•  NAC output is rate 0.5 A for Special Application or Regulated 24 VDC Appliances, or for audio operation; and can be wire Class B or Class A
• Relay contacts isolate signal inputs from outputs during supervision and do not monitor signal presence; signal inputs sources will need to be monitor separately
• During supervision, signal outputs are isolate from signal inputs by open contacts allowing consideration for use with SCIF applications
• Mounts in standard 4 in. square electrical box
• Optional covers are available to allow LED to be viewed after installation

Download the Specification sheet in *.pdf format
