Description

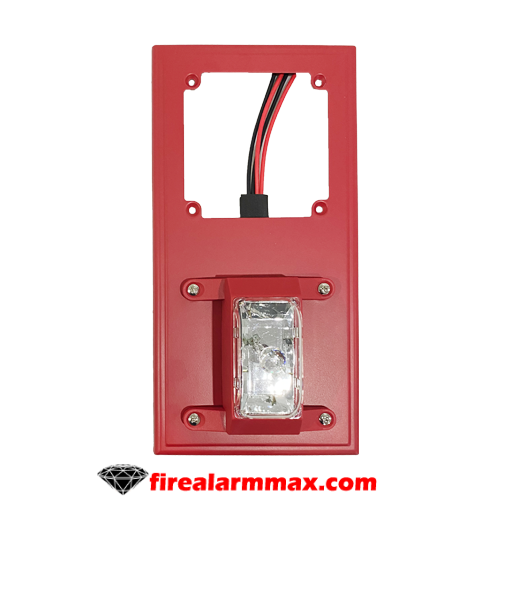

Amseco’s newly designed UL1971 listed Select-A-Strobe Series Amseco RSB24-153075 and SB24-75110 are designed to provide visual signaling devices for fire protective systems. Besides, they meet UL 1638 standard for visual signaling devices for the hearing impaired, ADA requirements, ANSI, and NFPA standards. The light output can be select by a selector jumper (white) located on the front panel. Also, the Amseco RSB24-153075 can be set for 15cd (jumper not cut) or 30cd (jumper cut).

In general, the visual alarm indicating the appliance shall be Amseco model SB24 Strobe Series or equivalent device. The strobe shall be list under UL 1971 standard for signaling devices for the hearing impaired as well as shall be approve for fire protective service. The candela output shall be field selectable, having a dual setting of 15/75 cd or 30/120 cd output. Furthermore, the signaling strobe shall operate on 24V DC from a non-coded regulated DC supply or full-wave rectified, unfiltered supply.

It comes designed to produce a signal flash of one flash per second with continuously applied minimum voltage. Additionally, the strobe shall be capable of wall or ceiling mounting to an electrical backbox. Visual signaling devices shall be mount to 80” above the highest floor point or 6” below the ceiling, whichever is the lowest.

Features / Specifications

• Strobe with two field selectable settings 15/30 and 75/110
• Designed to meet or exceed NFPA/ANSI standards and ADA accessibility guidelines
• Polarized models with wide listed voltage range using filtered DC or unfiltered FWR input voltage
• Flying leads for in/out wiring supervision
• Strobe synchronization requires an Amseco SMD10-3A (daisy chain) sync module
