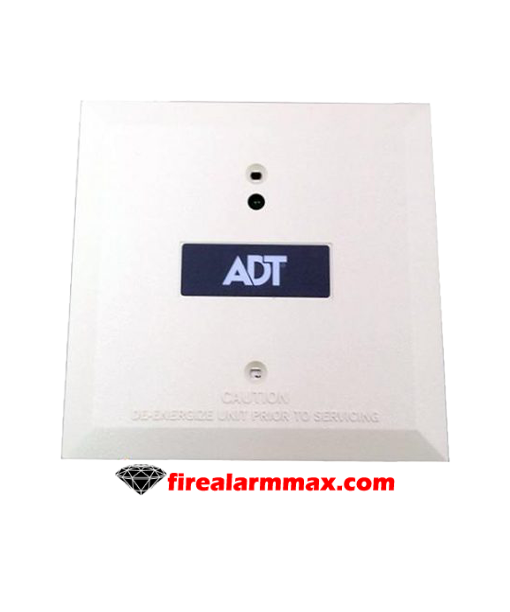

ADT M300CADT Monitor Module: Reliable Supervision for Fire Alarm Systems

The ADT M300CADT Monitor Module is an essential component for supervising fire alarm system circuits. Designed to monitor conventional devices like pull stations, waterflow switches, and other contact closures, it seamlessly integrates with addressable fire alarm control panels (FACPs), ensuring efficient system operation and enhanced safety.

Key Features

Addressable Monitoring

• Reports the status of connected devices to the fire alarm control panel.

• Ensures quick detection of alarm, trouble, or supervisory conditions.

Single-Input Circuit

• Designed for supervising one Class B (Style B) circuit.

• Reliable performance in monitoring waterflow, tamper switches, or other dry-contact devices.

LED Status Indicator

• Equipped with an LED that provides visual status confirmation for easy troubleshooting.

• Flashes during normal operation and remains solid when activated.

Compact and Versatile Design

• Small footprint allows for installation in electrical boxes or enclosures.

• Compatible with various fire alarm system configurations.

UL Listed and Code Compliant

• Meets NFPA and UL requirements, ensuring reliable performance in life safety systems.

Applications

The ADT M300CADT Monitor Module is ideal for:

• Monitoring manual pull stations for emergency activation.

• Supervising sprinkler system waterflow switches for fire detection.

• Tracking tamper switches on fire suppression systems.

• Integrating third-party devices into addressable fire alarm systems.

Installation Tips

• Wire according to the fire alarm control panel’s specifications for proper operation.

• Mount in an approved enclosure for added protection and durability.

• Perform regular system tests to ensure reliable monitoring and response.

• Label all monitored circuits for easy identification and maintenance.

Advantages

• Enhanced Fire Safety: Ensures continuous monitoring of critical fire alarm system components.

• Seamless Integration: Works with ADT addressable fire alarm systems.

• Reliable Performance: Provides accurate supervision of dry-contact devices.

• Easy Installation: Compact design allows for quick and efficient setup.
